Запчасти Case 121F (55.100.DO[01A]) - FUSE, RELAY - END DATE 28 FEBRUARY 2017 (55) - ELECTRICAL SYSTEMS

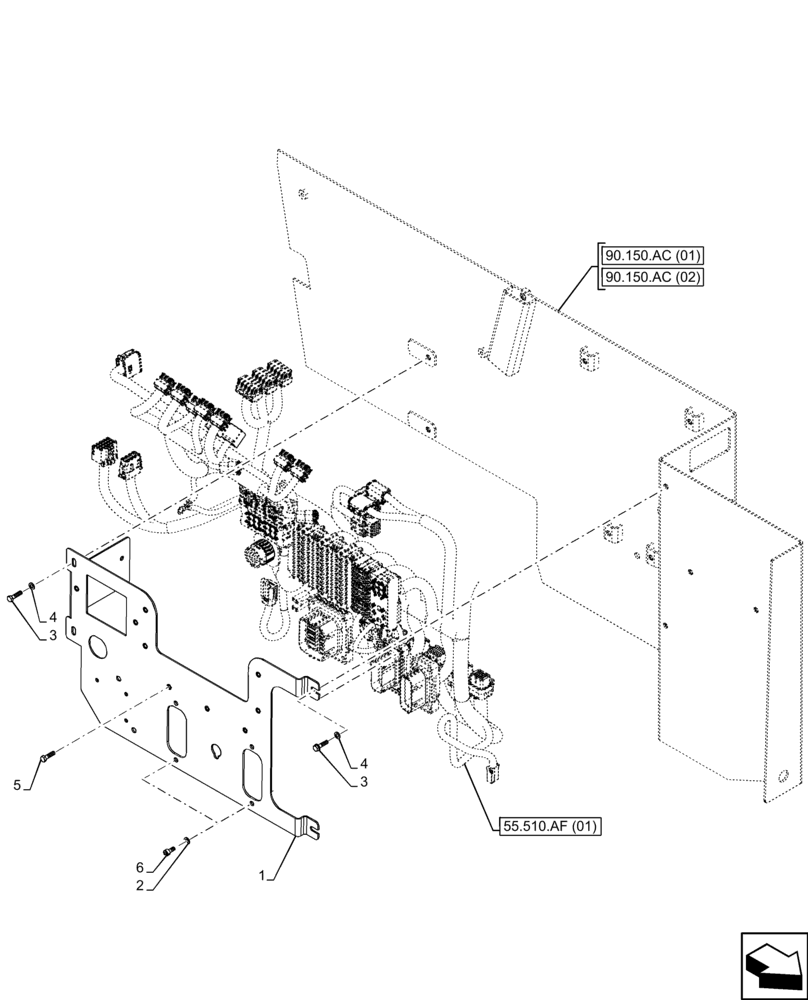

Схема запчастей Case 121F - (55.100.DO[01A]) - FUSE, RELAY - END DATE 28 FEBRUARY 2017 (55) - ELECTRICAL SYSTEMS
1
55.510.af (01)
6
90.150.ac (01)
4
2
4
3
90.150.ac (02)
5
3

Артикул

Название

Примечание

Количество

1

47749799

BRACKET

1шт.

2

14497701

WASHER,4.3mm ID x 8mm OD x 0.8mm Thk

4.3 x 8 x 0.8

4шт.

3

120098

BOLT,Hex, M5 x 20, 8.8, Full Thd

4шт.

4

140014

WASHER,M5 x 10mm OD x 1mm Thk

4шт.

5

10978024

BOLT,Hex, M5 x 20mm, Cl 8.8, Full Thd

3шт.

6

86639261

SCREW,M4 x 14mm, Cl 4.8

4шт.

Выбрано товаров: 6
