(55.051.AD[04]) - VAR - 734506 - AIR CONDITIONER, CONTROL PANEL, COMPONENTS

Запчасти Case 121F (55.051.AD[04]) - VAR - 734506 - AIR CONDITIONER, CONTROL PANEL, COMPONENTS (55) - ELECTRICAL SYSTEMS

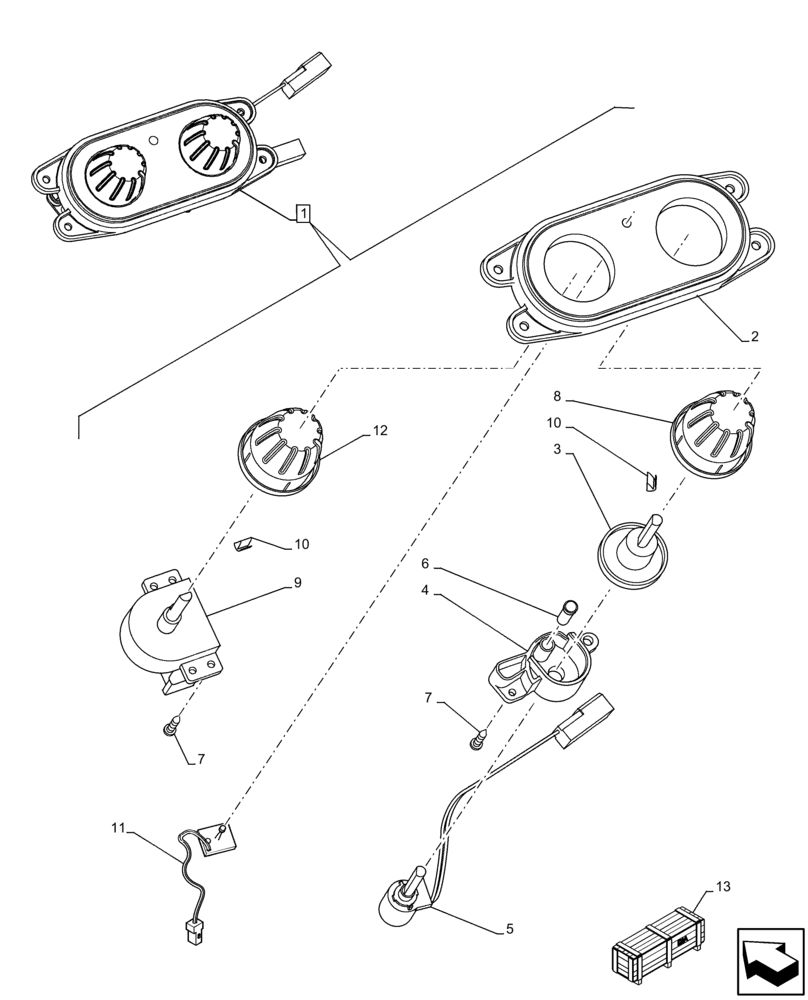

Схема запчастей Case 121F - (55.051.AD[04]) - VAR - 734506 - AIR CONDITIONER, CONTROL PANEL, COMPONENTS (55) - ELECTRICAL SYSTEMS
11
7
13
12
8
5
9
6
10
10
1
4
2
3
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84296746

CONTROL

ASSY, Incl 2 - 12

1шт.

2

84582138

CONTROL PANEL

Air Conditioner

1шт.

3

84582140

ADAPTER

1шт.

4

84582141

SUPPORT

1шт.

5

84582144

POTENTIOMETER

Air Conditioner, Temp Control

1шт.

6

84582145

STOP LOCK

1шт.

7

84582146

SCREW,M3 x 10mm L

M3 x 10

5шт.

8

84582147

KNOB

1шт.

9

84582181

COMMUTATOR

Air Conditioner Control Panel, Fan Speed Control

1шт.

10

84582158

CLIP

2шт.

11

84582179

PRINTED CIRCUIT BOAR

Air Conditioner

1шт.

12

84582180

KNOB

1шт.

13

47731629

KIT

Air Conditioner and Heater W50C - W60C, 21F - 121F, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.

13

47731630

KIT

Air Conditioner and Heater W70C - W80C, 221F - 321F, Incl 1 - 12

1шт.

To See Full DIA KIT Composition Look for all the Figures where the DIA KIT PIN Is Shown

1шт.
