Запчасти Case 121F (55.015.AB[03]) - HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS

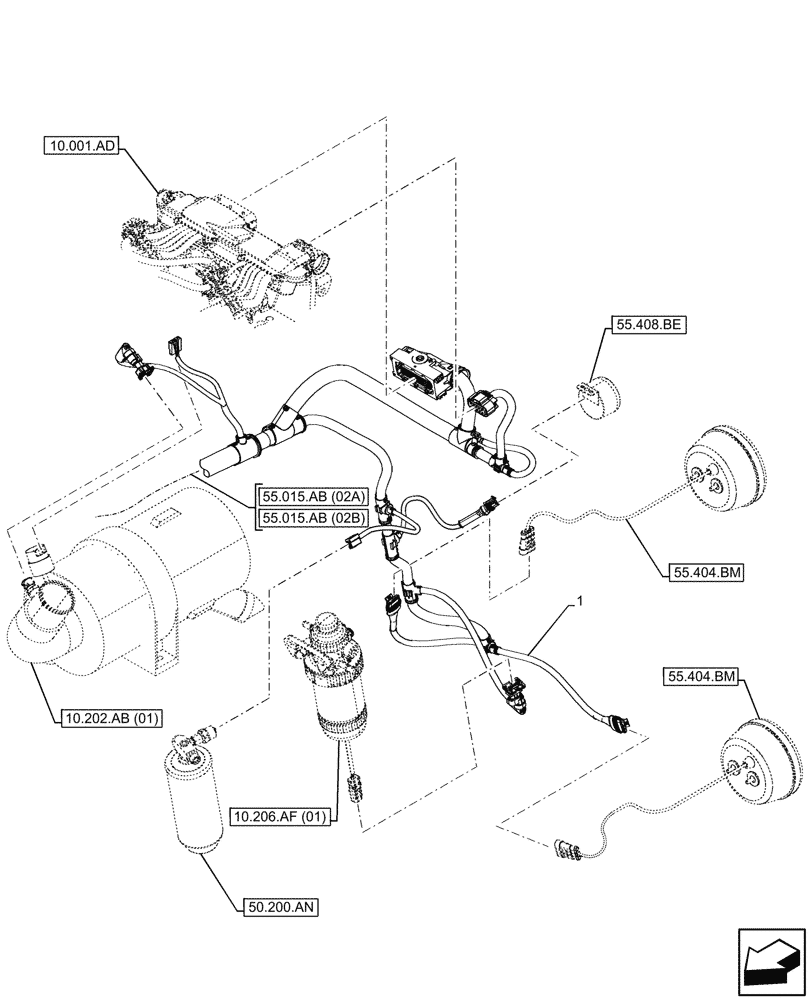

Схема запчастей Case 121F - (55.015.AB[03]) - HARNESS, ENGINE (55) - ELECTRICAL SYSTEMS
55.404.bm
1
55.404.bm
55.015.ab (02a)
10.001.ad
10.202.ab (01)
55.408.be
10.206.af (01)
55.015.ab (02b)
50.200.an

Артикул

Название

Примечание

Количество

1

47695696

WIRE HARNESS

Engine and Transmission, Years: -28-FEB-17

1шт.

1

47937093

WIRE HARNESS

Engine and Transmission, Start Year: 01-MAR-17

1шт.

Выбрано товаров: 2
