(35.723.AA[03]) - VAR - 734608 - BUCKET, CYLINDER

Запчасти Case 121F (35.723.AA[03]) - VAR - 734608 - BUCKET, CYLINDER (35) - HYDRAULIC SYSTEMS

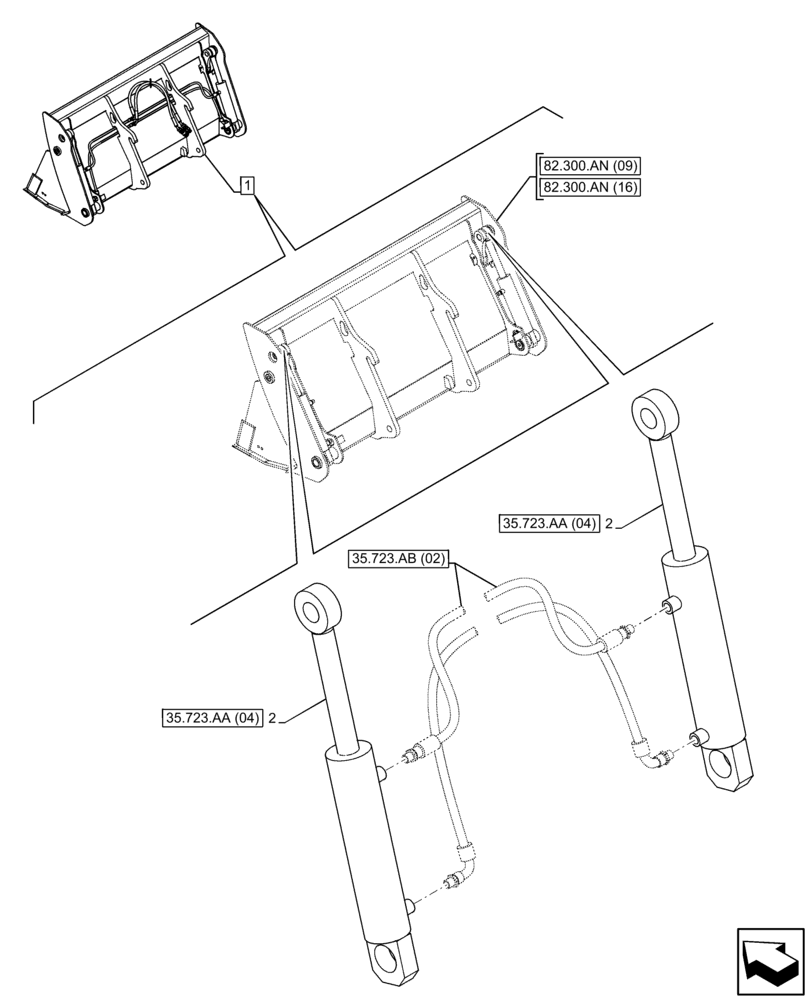

Схема запчастей Case 121F - (35.723.AA[03]) - VAR - 734608 - BUCKET, CYLINDER (35) - HYDRAULIC SYSTEMS
35.723.aa (04)
1
35.723.aa (04)
82.300.an (16)
35.723.ab (02)
82.300.an (09)
2
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47464790

4 IN 1 BUCKET

2050mm, ASSY, Incl 2, Years: -18-DEC-15

1шт.

1

47855920

4 IN 1 BUCKET

2050mm, ASSY, Incl 2, Start Year: 19-DEC-15

1шт.

2

47645161

BUCKET CYLINDER

ASSY

2шт.

Выбрано товаров: 3
