(35.355.AD) - PILOT VALVE, TANK, LINE

Запчасти Case 121F (35.355.AD) - PILOT VALVE, TANK, LINE (35) - HYDRAULIC SYSTEMS

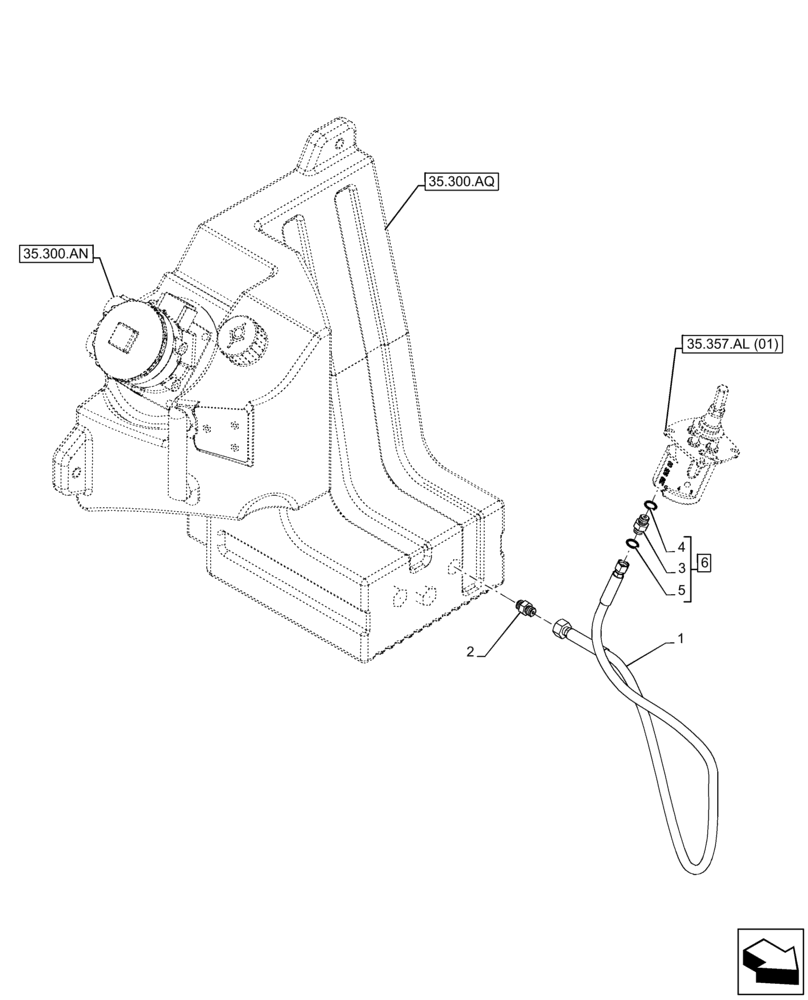

Схема запчастей Case 121F - (35.355.AD) - PILOT VALVE, TANK, LINE (35) - HYDRAULIC SYSTEMS
4
5
3
35.357.al (01)
6
2
35.300.an
35.300.aq
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47501129

HYDRAULIC HOSE

Pilot Valve T to Oil Tank

1шт.

2

83985067

HYD CONNECTOR,13/16" - 16 ORFS x 9/16" - 18 ORB

REPLACED BY 9992342

1шт.

3

NSS

NOT SOLD SEPARAT

Connector, Incl in 6

1шт.

4

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

5

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

1шт.

6

85802803

FITTING,9/16"-18 ORFS x 9/16"-18 ORB

ASSY, Incl 3 - 5

1шт.

Выбрано товаров: 6
