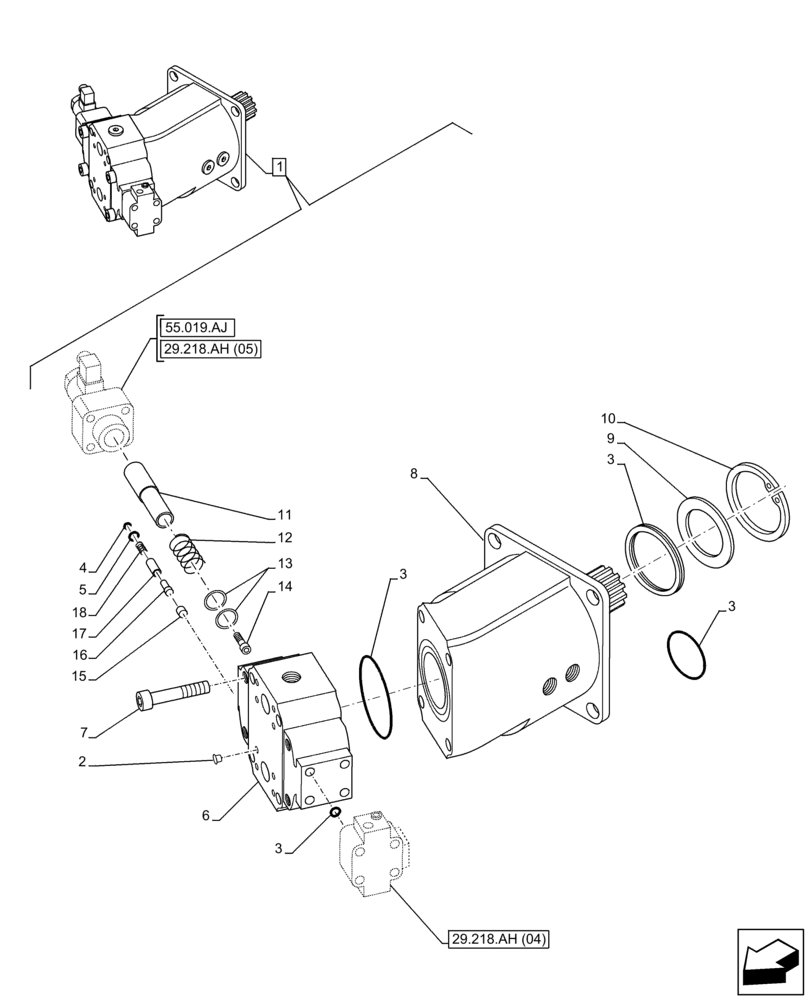

Запчасти Case 121F (29.218.AH[03]) - HYDROSTATIC MOTOR, COMPONENTS (29) - HYDROSTATIC DRIVE

1

47444918

HYDRAULIC MOTOR

ASSY, Incl 2 - 18

1шт.

2

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

3

47627319

KIT

1шт.

Include also Gaskets in Figure 29.218.AH (04), (05)

1шт.

4

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

5

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

6

47627327

COVER

, Serial Range: -NEHP00254

1шт.

7

9848677

HEX SOC SCREW,M12 x 65mm, Cl 8.8

8шт.

8

NSS

NOT SOLD SEPARAT

Body, Incl in 1

1шт.

9

NSS

NOT SOLD SEPARAT

Spacer, Incl in 1

1шт.

10

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

1шт.

11

NSS

NOT SOLD SEPARAT

Shaft, Incl in 1

1шт.

12

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.

13

NSS

NOT SOLD SEPARAT

Ring, Incl in 1

2шт.

14

NSS

NOT SOLD SEPARAT

Bolt, Incl in 1

1шт.

15

NSS

NOT SOLD SEPARAT

Plug, Incl in 1

1шт.

16

NSS

NOT SOLD SEPARAT

Valve, Incl in 1

1шт.

17

NSS

NOT SOLD SEPARAT

Bush, Incl in 1

1шт.

18

NSS

NOT SOLD SEPARAT

Spring, Incl in 1

1шт.
