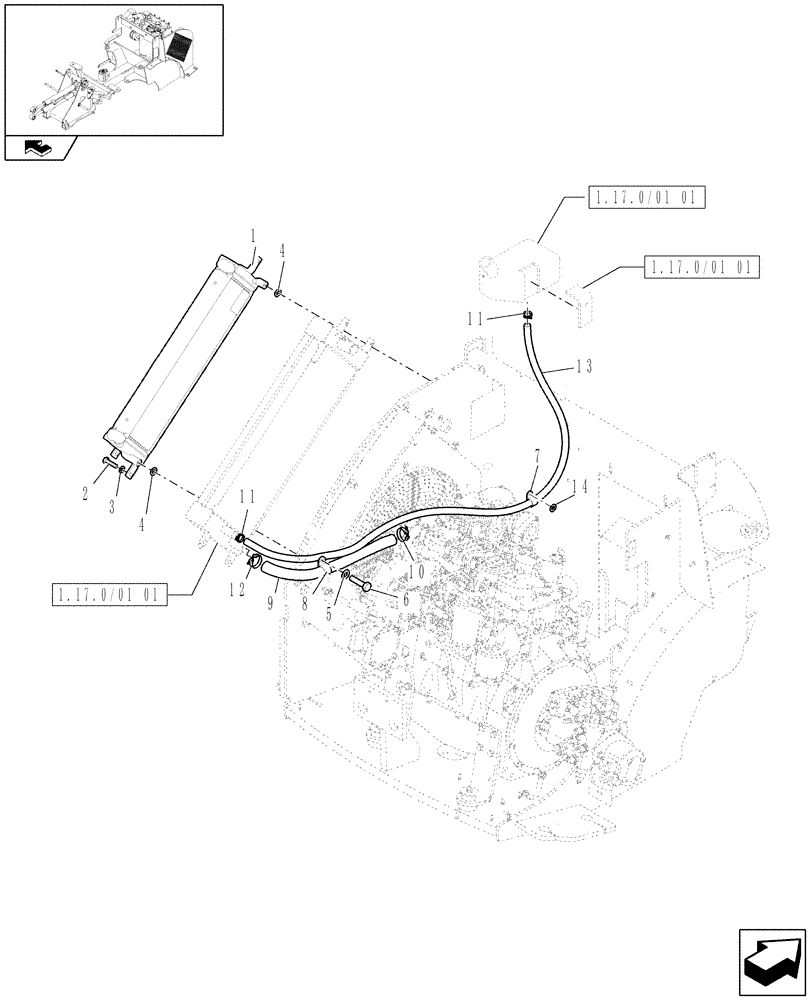

Запчасти Case 321E (1.17.0/01[02]) - COOLING SYSTEM (02) - ENGINE EQUIPMENT

1

87635187

RADIATOR

Oil cooler

1шт.

2

7121462

BOLT,Hex, M8 x 14mm, Cl 8.8

3шт.

3

2975165

WASHER

3шт.

4

87702456

RUBBER WASHER

2шт.

5

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

6

56656

BOLT,Hex, M10 x 20mm, Cl 8.8

6шт.

7

991365

CLIP

1шт.

8

924181

CLIP

1шт.

9

87721230

RADIATOR HOSE

1шт.

10

76084984

CLAMP,45mm - 67mm, Worm Clamp

1шт.

11

87482165

HOSE CLAMP,1" - 1.75", Worm Gear

2шт.

12

76084436

HOSE CLAMP,1.25" - 2.12", Worm Gear

1шт.

13

6551494

HOSE

1шт.

14

104731

WASHER

1шт.
