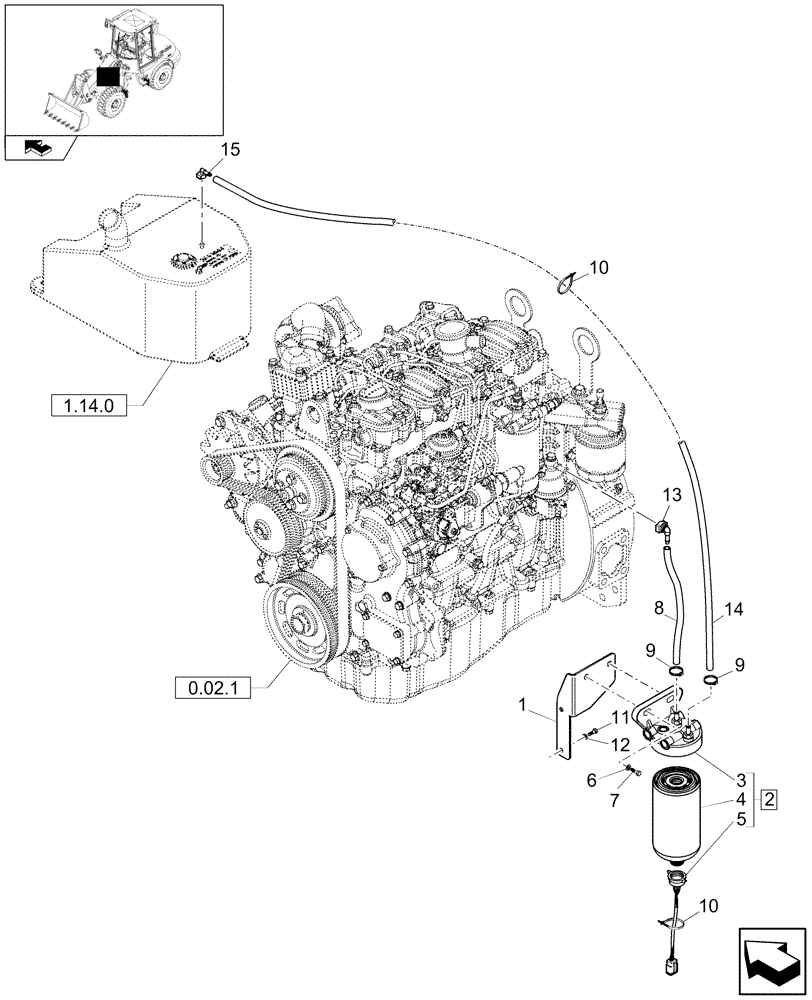

Запчасти Case 321E (438) - FUEL FILTER - BRAZILIAN - OPTIONAL CODE 482438007 (01) - ENGINE

1

47449695

MOUNTING PLATE

1шт.

2

84553984

FUEL FILTER

Assy, Incl 3 - 5

1шт.

3

84534995

FITTING

1шт.

4

84527831

FUEL FILTER

1шт.

5

84527833

SENSOR

2шт.

6

86624176

WASHER,11mm ID x 20mm OD x 2mm Thk

2шт.

7

16043831

SCREW,Hex, M8 x 1.25 x 30mm, Cl 10.9, Full Thd

2шт.

8

47463892

FLEXIBLE HOSE

1шт.

9

773927

HOSE CLAMP

2шт.

10

94919

CABLE TIE

7шт.

11

9824642

BOLT,M12 x 1.75 x 42.68mm, Cl 10.9

2шт.

12

12648531

WASHER,12.2mm ID x 28mm OD x 4mm Thk

2шт.

13

84350218

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 3/8" Voss

1шт.

14

47471527

FLEXIBLE HOSE

1шт.

15

84350217

FITTING,Fuel, 90 Degree Elbow, 5/16" Hose Barb x 5/16" Voss

1шт.
