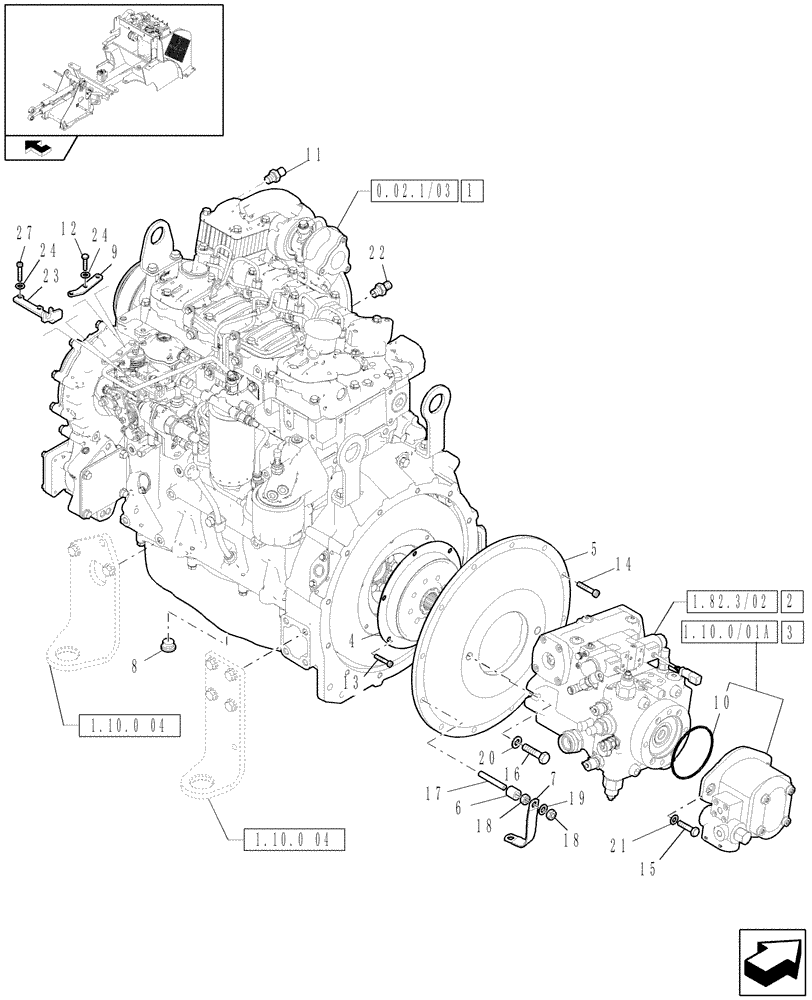

Запчасти Case 321E (1.10.0/03[02]) - ENGINE INSTALLATION AND COMPONENTS (01) - ENGINE

1

6551335

ENGINE

Assy

1шт.

6551335ER

REMAN-REPLACEMENT EN

321E Series 3, F5C, Tier 3, 4 Cyl., TC, 2v, New Replacement Eng., N.A. Only

1шт.

6551335EPAC

CORE-EPA ENGINE

Return Number, For N.A. Only

1шт.

1

6551335R

EXCHANGE ENGINE

F5C Replacement Engine - For N.A. Only

1шт.

1

6551335C

CORE-ENGINE

Return number - For N.A. only

1шт.

47456816R

REMAN-BASIC ENGINE

321E Series 3 w/F5C 4 Cyl., 2 Valve Tier 3 Engine, (11/07)

1шт.

47456816C

CORE-BASIC ENGINE

Return Number

1шт.

2

87667157

HYDROSTATIC PUMP,71 CC

Assy

1шт.

3

87635156

HYDRAULIC PUMP,22.5 CC

1шт.

4

2813835

CLUTCH,215.8mm OD

1шт.

5

87667145

COUPLING FLANGE

1шт.

6

501046

BUSHING

1шт.

7

84177008

GROUND STRAP

1шт.

8

84198671

DRAIN PLUG

1шт.

9

6551504

LEVER

1шт.

10

1448971

O-RING

1шт.

11

87700250

THERMOSTATIC SWITCH

1шт.

12

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

13

2977405

SCREW

6шт.

14

56707

HEX SOC SCREW,M10 x 25mm, Cl 8.8

10шт.

15

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

2шт.

16

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

17

1768777

STUD

1шт.

18

57127

NUT,M10, Cl 8

2шт.

19

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

20

1836970

WASHER

2шт.

21

NLS

NO LONGER SERVICED

2шт.

22

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

23

87692493

HOLDER

1шт.

24

2372234

WASHER

4шт.

25

84139321

SCREW

2шт.
