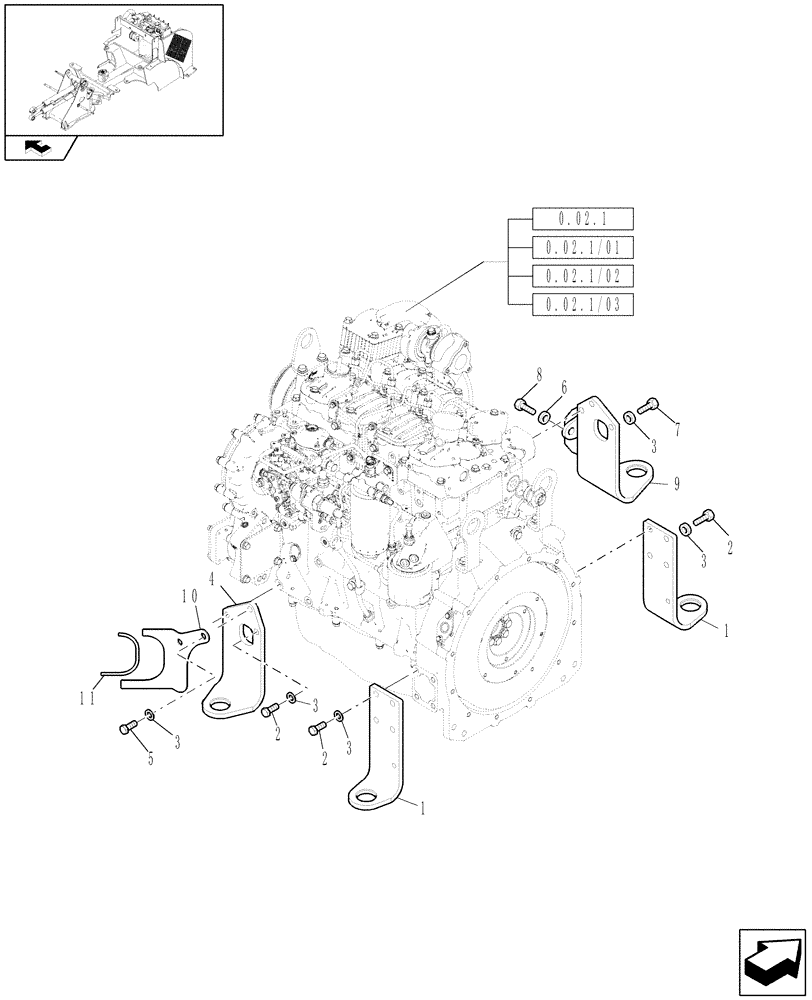

Запчасти Case 321E (1.10.0[05]) - ENGINE INSTALLATION AND COMPONENTS - AFTER DATE 20/09/ 2011 (01) - ENGINE

1

6559656

ENGINE MOUNT

2шт.

2

11112634

SCREW

M12x35, 10.9

10шт.

3

8408970

WASHER

14шт.

4

84543339

ENGINE MOUNT

1шт.

5

412087

BOLT,Hex, M12 x 1.75 x 45mm, Cl 10.9, Full Thd

1шт.

6

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

7

628-12050

BOLT,Hex, M12 x 1.75 x 50mm, Cl 10.9, Full Thd

M12x50

3шт.

8

56668

BOLT,Hex, M12 x 25mm, Cl 8.8

M12X25

1шт.

9

84543728

ENGINE MOUNT

1шт.

10

87754585

BRACKET

1шт.

11

750524

SEAL

1шт.
