(696[01]) - (1M³) X 2100 MM STANDARD BUCKET WITH WELDED TEETH - BEFORE DATE 15 JUNE, 2011

Запчасти Case 321E (696[01]) - (1M³) X 2100 MM STANDARD BUCKET WITH WELDED TEETH - BEFORE DATE 15 JUNE, 2011 (09) - LOADER/BACKHOE

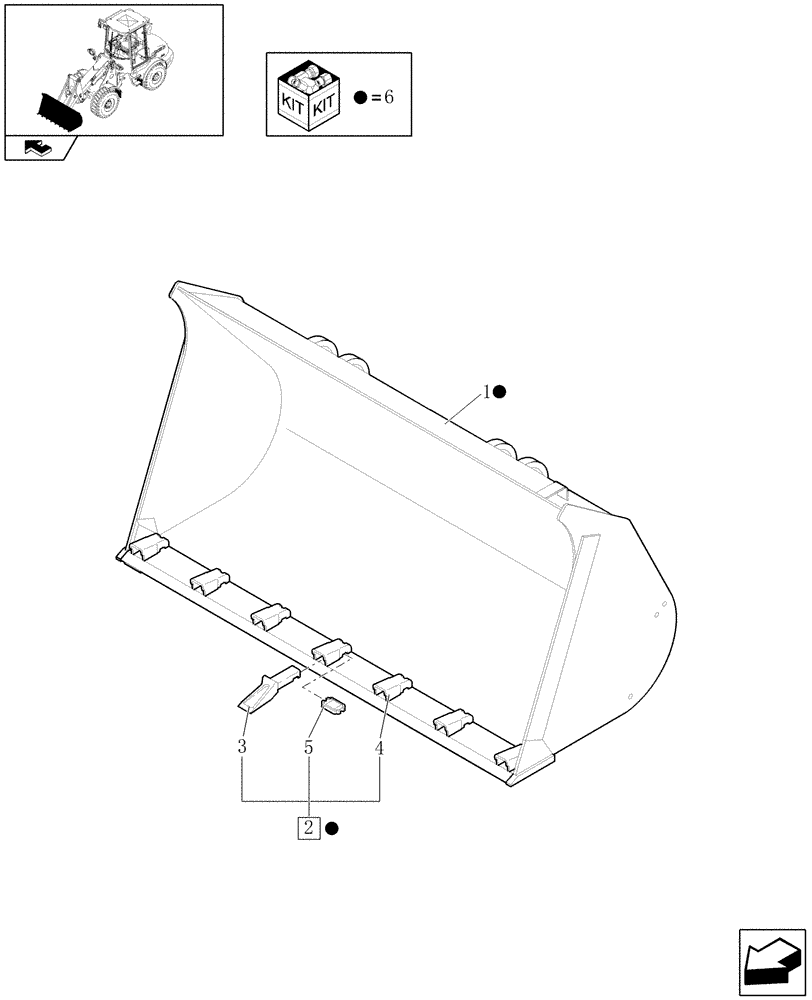

Схема запчастей Case 321E - (696[01]) - (1M³) X 2100 MM STANDARD BUCKET WITH WELDED TEETH - BEFORE DATE 15 JUNE, 2011 (09) - LOADER/BACKHOE
6
6
1
5
20
2
6
4
3
6
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

1шт.

2

1728653

BUCKET TOOTH

Assy

1шт.

3

589470

BUCKET TOOTH

7шт.

4

552490

BUCKET TOOTH SHANK

7шт.

5

1461666

BUCKET TOOTH KEY

7шт.

6

2840508

SHOVEL

Assy

1шт.

Выбрано товаров: 0
