(079[02]) - (1.2 M³) X 2100 MM STANDARD BUCKET WITH BOLTED TEETH - AFTER DATE 15 JUNE, 2011

Запчасти Case 321E (079[02]) - (1.2 M³) X 2100 MM STANDARD BUCKET WITH BOLTED TEETH - AFTER DATE 15 JUNE, 2011 (09) - LOADER/BACKHOE

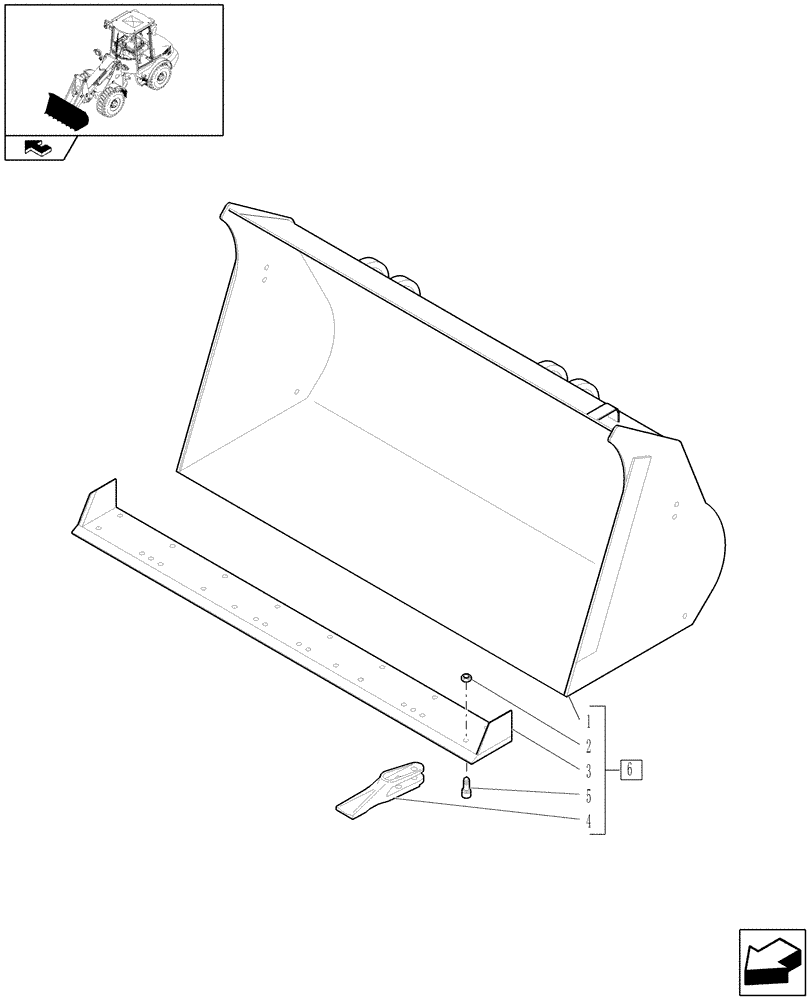

Схема запчастей Case 321E - (079[02]) - (1.2 M³) X 2100 MM STANDARD BUCKET WITH BOLTED TEETH - AFTER DATE 15 JUNE, 2011 (09) - LOADER/BACKHOE
6
1
home
4
3
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

1шт.

2

86625067

NUT,5/8"-11, G8

16шт.

3

2840299

CUTTING EDGE

1шт.

4

85811440

BUCKET TOOTH SHANK

8шт.

5

85801371

PLOW BOLT,#3, 5/8" - 11 x 2 1/4", Cl 12.9

16шт.

6

84206254

BUCKET

Assy to GESCHROEFDE TANDEN -

1шт.
