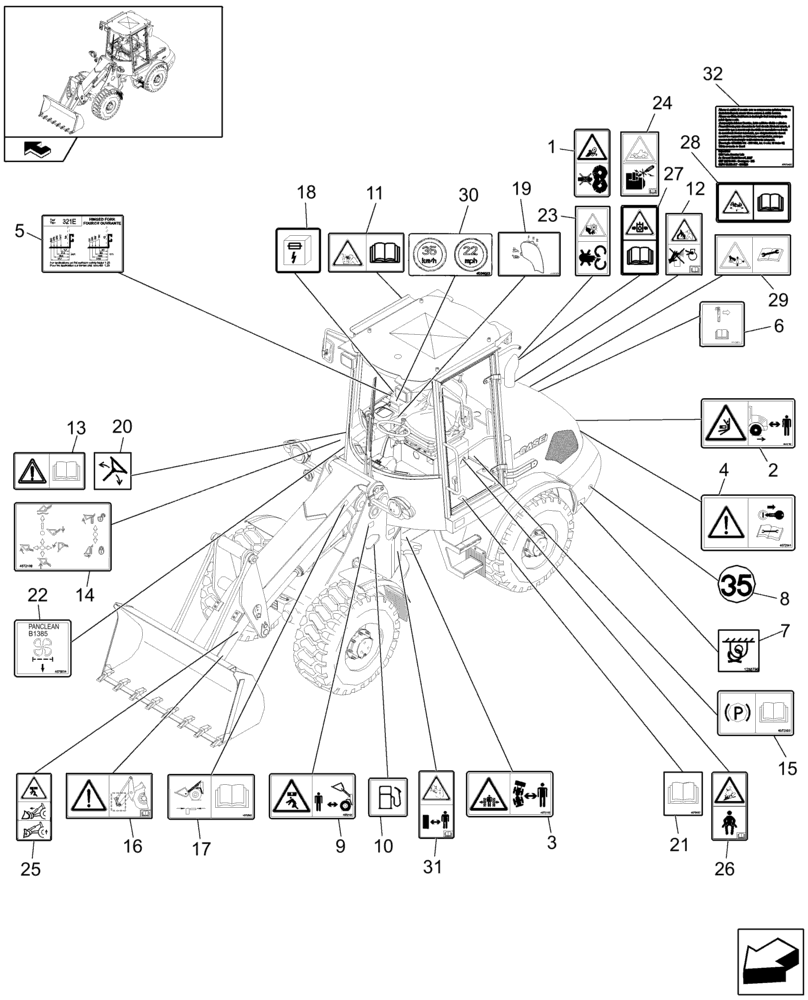

Запчасти Case 321E (609/02[01]) - DECALS - HIGH SPEED - PORTUGUESE-BRAZILIAN - OPTIONAL CODE 482609027 (08) - SHEET METAL/DECALS

1

87585333

DECAL

V-Belt

1шт.

2

4572102

IDEOGRAM

Stay Danger Rear

1шт.

3

4572103

IDEOGRAM

Stay Break Area

2шт.

4

4572341

IDEOGRAM

Engine Stasis

1шт.

5

6559960

DECAL

Loading Capacity

1шт.

6

4575031

IDEOGRAM

Pin Drawbar

1шт.

7

1288796

DECAL

Fixing Point Rigging

4шт.

8

4577700

DECAL

35 Km, Serial Range: -NEHP00044

3шт.

9

4572101

DANGER DECAL

Stay Danger Front

2шт.

10

4572111

DECAL

Fuel

1шт.

11

76083798

DECAL

Danger of Explosion Battery

1шт.

12

8603095

WARNING DECAL

Warning Etheriso

1шт.

13

3016648

IDEOGRAM

Instruction Manual

1шт.

14

4572108

DECAL

Joystick

1шт.

15

4572503

IDEOGRAM

Parking Brake Loosen

1шт.

16

6559337

DECAL

Attachment Europe

1шт.

17

4572502

DECAL

Carry Position Bucket

1шт.

18

4572504

IDEOGRAM

Fuse Box

1шт.

19

4576974

DECAL

Instruction Plate Joystick

1шт.

20

4574997

IDEOGRAM

Adjust Steering Column

1шт.

21

4575032

IDEOGRAM

Manual

1шт.

22

4575034

IDEOGRAM

Fresh Air Filter

1шт.

23

76084618

DECAL

Fan Motor

1шт.

24

76084608

DECAL

Starter

1шт.

25

76082201

DECAL

Quick Pin Coupler

1шт.

26

76082781

DECAL

Safety Belt

1шт.

27

76084616

DECAL

Pressurized System Hazard

3шт.

28

76084757

DECAL

Fluid Under Pressure

1шт.

29

76084761

DECAL

Accumulator Brake Pressure

2шт.

30

4554602

DECAL

Max 35 km/h, Serial Range: -NEHP00044

1шт.

31

76084755

DECAL

Security Converting Kit

1шт.

32

47675422

DECAL

Battery Environment

1шт.
