(1.87.4/01[01A]) - FRONT AND REAR WHEEL GUARD, FROM DATE MAR 15, 2013

Запчасти Case 321E (1.87.4/01[01A]) - FRONT AND REAR WHEEL GUARD, FROM DATE MAR 15, 2013 (08) - SHEET METAL/DECALS

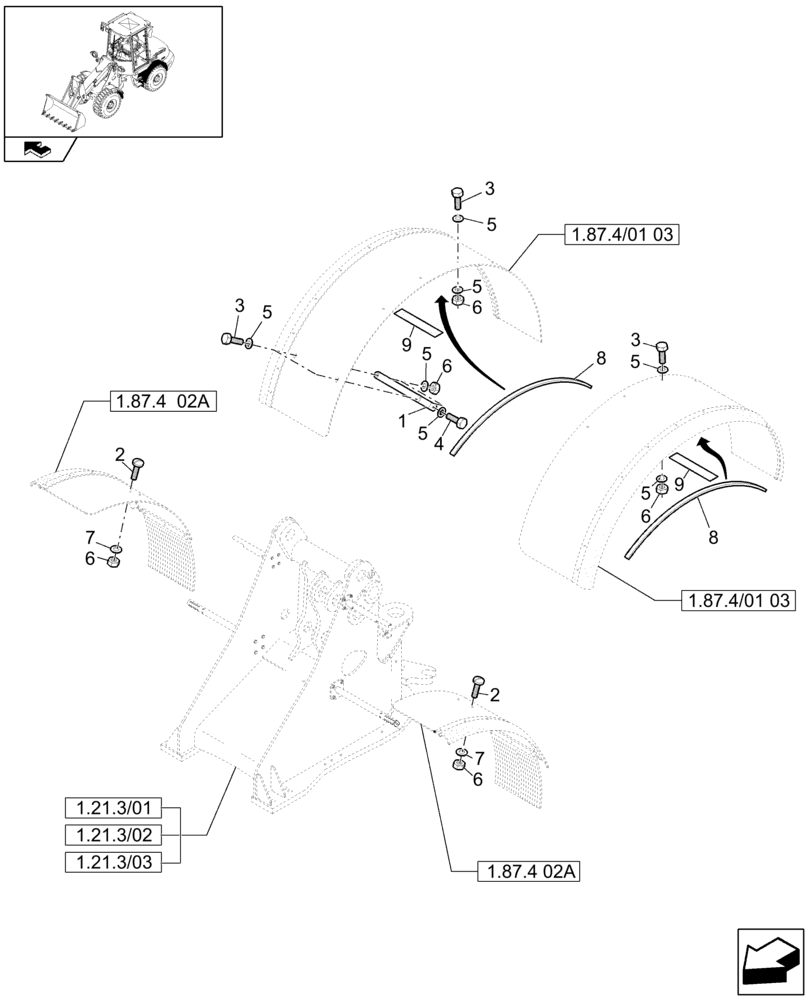

Схема запчастей Case 321E - (1.87.4/01[01A]) - FRONT AND REAR WHEEL GUARD, FROM DATE MAR 15, 2013 (08) - SHEET METAL/DECALS
8
5
5
3
home
1.87.4/01 03
1.21.3/03
6
5
6
7
6
1
5
9
1.87.4 02a
4
6
9
8
1.21.3/02
5
1.21.3/01
6
5
3
7
3
2
2
1.87.4 02a
5
1.87.4/01 03
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4552189

RETAINER

GREY

1шт.

2

2929702

HEX SOC SCREW,M8 x 20mm L

6шт.

3

54405

BOLT,Hex, M8 x 25, 8.8

14шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

5

62543

WASHER

28шт.

6

68841

NUT,M8 x 1.25, Cl 8

21шт.

7

2975165

WASHER

4шт.

8

2928063

SEAL

1шт.

9

4150664

SEAL

1шт.
