(1.87.4/01[01]) - FRONT AND REAR WHEEL GUARD, UP TO DATE MAR 14, 2013

Запчасти Case 321E (1.87.4/01[01]) - FRONT AND REAR WHEEL GUARD, UP TO DATE MAR 14, 2013 (08) - SHEET METAL/DECALS

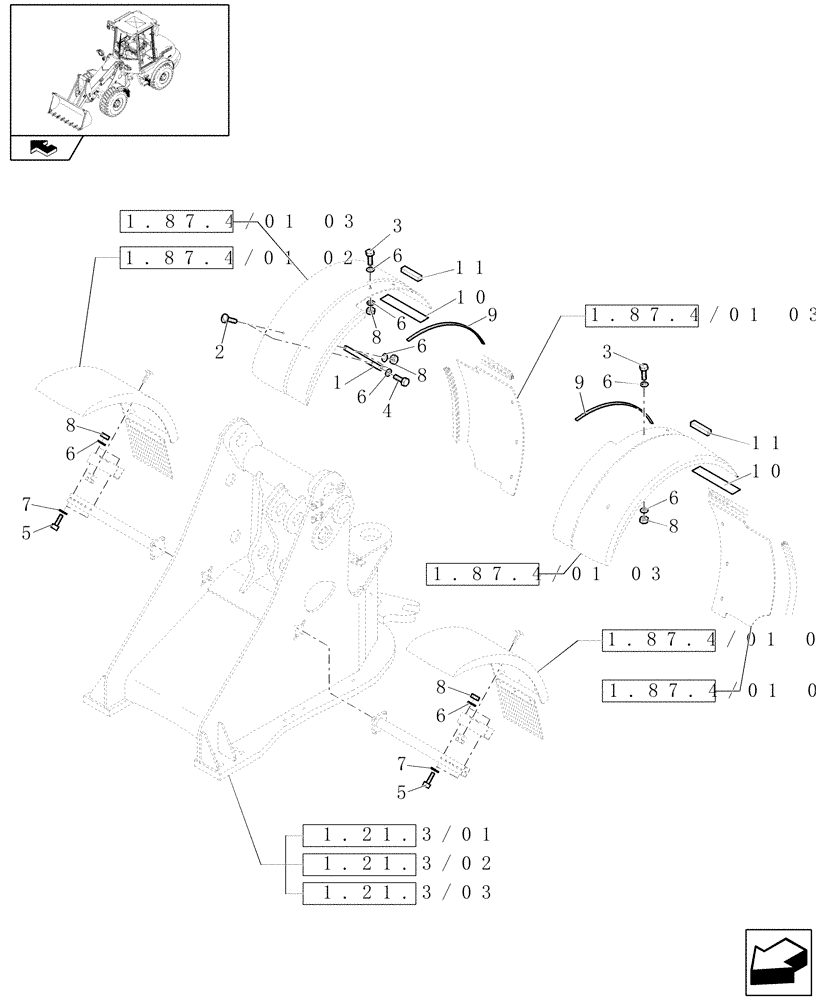

Схема запчастей Case 321E - (1.87.4/01[01]) - FRONT AND REAR WHEEL GUARD, UP TO DATE MAR 14, 2013 (08) - SHEET METAL/DECALS
5
6
8
1.87.4/01 03
3
6
8
6
11
9
8
8
9
8
6
6
6
home
1.87.4/01 03
1.21.3/01
1.21.3/03
1.21.3/02
7
10
5
7
6
4
1.87.4/01 02
1.87.4/01 02
1.87.4/01 03
1.87.4/01 03
1
2
11
3
6
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4552189

RETAINER

1шт.

2

2929702

HEX SOC SCREW,M8 x 20mm L

2шт.

3

54405

BOLT,Hex, M8 x 25, 8.8

12шт.

4

2975214

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

5

2977405

SCREW

4шт.

6

62543

WASHER

32шт.

7

2975165

WASHER

4шт.

8

68841

NUT,M8 x 1.25, Cl 8

19шт.

9

2928063

SEAL

1шт.

10

2928063

SEAL

1шт.

11

4150664

SEAL

1шт.
