(1.82.3/02[05]) - AXIAL PUMP DISTRIBUTOR PLATE

Запчасти Case 321E (1.82.3/02[05]) - AXIAL PUMP DISTRIBUTOR PLATE (07) - HYDRAULIC SYSTEMS

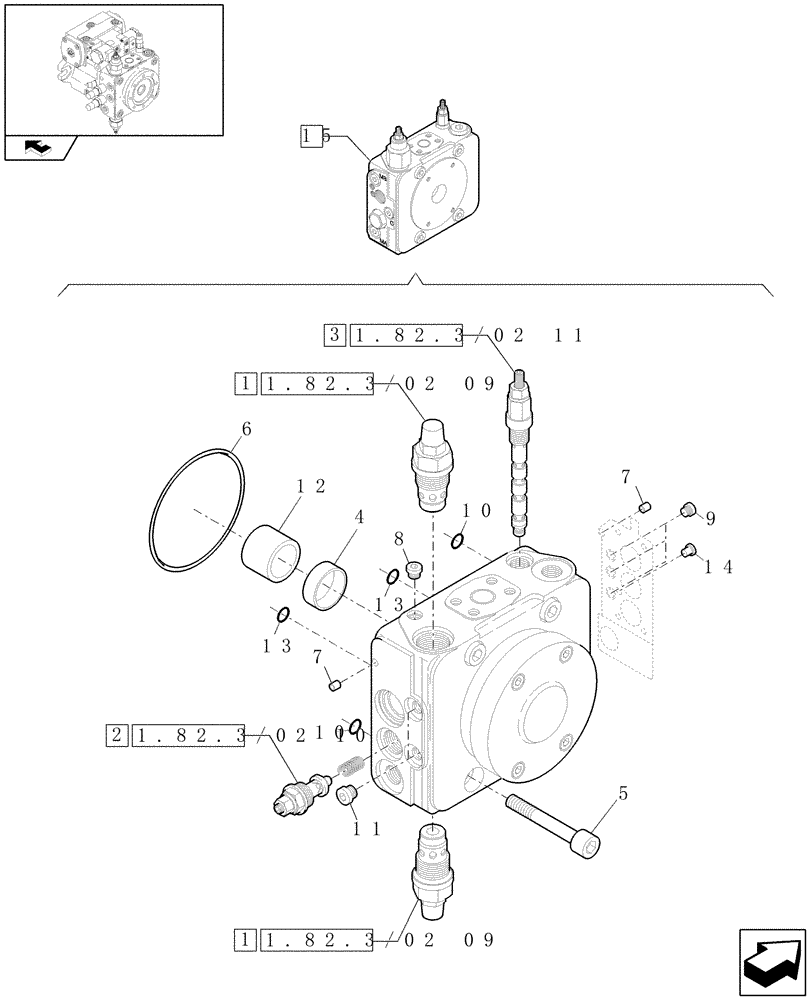

Схема запчастей Case 321E - (1.82.3/02[05]) - AXIAL PUMP DISTRIBUTOR PLATE (07) - HYDRAULIC SYSTEMS
14
4
6
9
10
7
7
1
3
11
8
2
home
1.82.3/02 09
1.82.3/02 10
1.82.3/02 09
1.82.3/02 11
13
13
5
10
1
15
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

8487542

VALVE PRESSURE RELIE

Assy

2шт.

2

8485039

VALVE PRESSURE RELIE

Assy

1шт.

3

8485040

HYDRAULIC VALVE

Assy

1шт.

4

1464770

BEARING ASSY

1шт.

5

152539

SCREW,Cyl Hd, M16 x 100mm, Cl 12.9

4шт.

6

1476492

O-RING

1шт.

7

8485166

BUSHING

2шт.

8

1637351

PLUG,Hex Skt, M10 x 1 x 12mm

1шт.

9

1403736

DRAIN PLUG,M8 x 1

3шт.

10

763075

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

970659

PLUG,M12 x 1.5

2шт.

12

8485043

BUSHING

1шт.

13

1402905

O-RING,12.42mm ID x 1.78mm Width

2шт.

14

1468962

PLUG

1шт.

15

8487249

HYDRAULIC VALVE

Assy

1шт.
