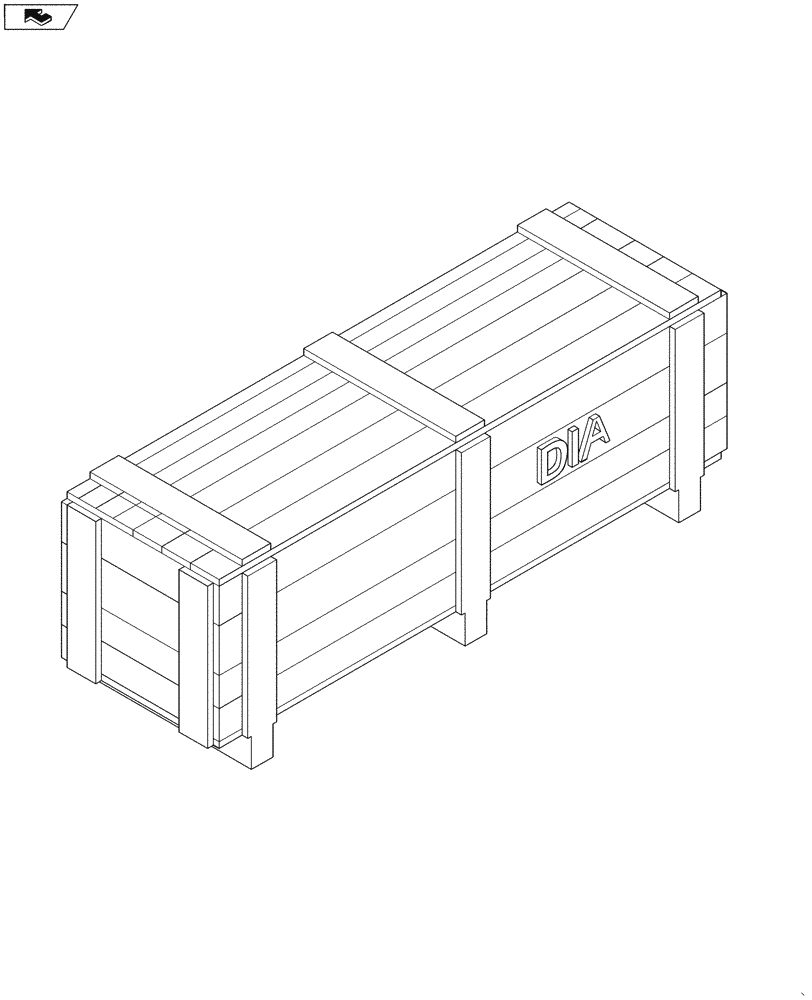

Запчасти Case 321E (88.035.01) - DIA KIT, UNI-DIR W/MC. STANDARD DIPPER Attachments

1

84276538

KIT

Uni-Direction W/Mc, Incl 2 - 13

1шт.

2

100016

NUT,M10 x 1.5, Cl 8

2шт.

3

10569179

LOCK WASHER,5.1mm ID x 9.2mm OD x 1.2mm Thk

2шт.

4

137219A1

SWITCH

Foot Auxiliary Hydraulic

1шт.

5

1960667

HEX SOC SCREW,M8 x 90mm, Cl 8.8

2шт.

6

201-140

HYD CONNECTOR,1-3/16" - 12, Blkhd, ORFS

Union Tube

2шт.

7

201-907

CAP,1-3/16" - 12 ORFS

2шт.

8

214-3188

HOSE CLAMP,4-3/4" - 5-5/8", HD Worm

Hd Worm Gear

3шт.

9

218-1249

BHD LOCK NUT,1-3/16" - 12

2шт.

10

242459A1

SHIN

Clamp

2шт.

11

243398A1

SUPPORT

Plate, Clamp

2шт.

12

300030A1

COVER

1шт.

13

300510

BOLT,Hex, M8 x 65mm, Cl 8.8

2шт.
