Запчасти Case 321E (076/01[08A]) - 20 / 35 KM/H (HIGH SPEED) FRONT RIGID AXLE: SERVICE BRAKE (04) - FRONT AXLE

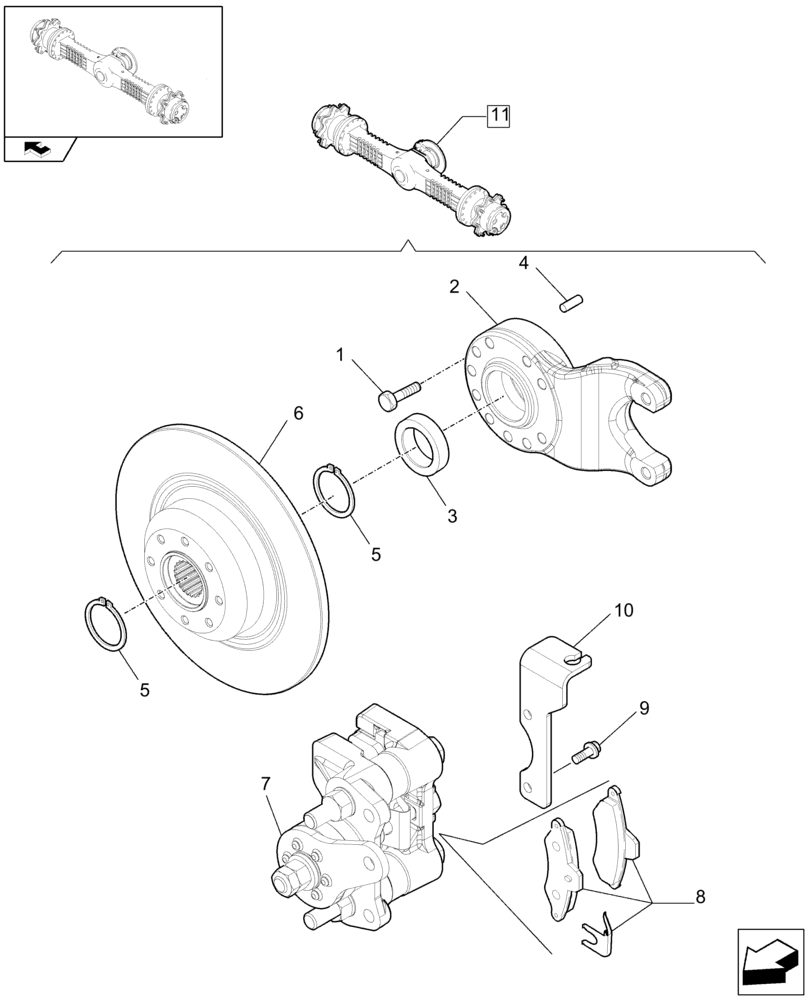

Схема запчастей Case 321E - (076/01[08A]) - 20 / 35 KM/H (HIGH SPEED) FRONT RIGID AXLE: SERVICE BRAKE (04) - FRONT AXLE
11
1
5
7
4
10
5
3
home
9
8
6
2

Артикул

Название

Примечание

Количество

1

6914531

SCREW

, Start Serial: NCHP00241

1шт.

2

84583090

BRACKET

, Start Serial: NCHP00241

1шт.

3

K262143

OIL SEAL,16mm W, 35mm ID x 52mm OD

, Start Serial: NCHP00241

1шт.

4

47610367

DOWEL

, Start Serial: NCHP00241

1шт.

5

6914466

SNAP RING

, Start Serial: NCHP00241

2шт.

6

47572233

BRAKE DISC

, Start Serial: NCHP00241

1шт.

7

84583042

PARKING BRAKE

Includes 8, Start Serial: NCHP00241

1шт.

8

47572229

SERVICE KIT

, Start Serial: NCHP00241

1шт.

9

84583043

LOCK BOLT

, Start Serial: NCHP00241

2шт.

10

47467981

BRACKET

, Start Serial: NCHP00241

1шт.

11

84550221

FRONT AXLE

, Start Serial: NCHP00241

1шт.

Выбрано товаров: 11
