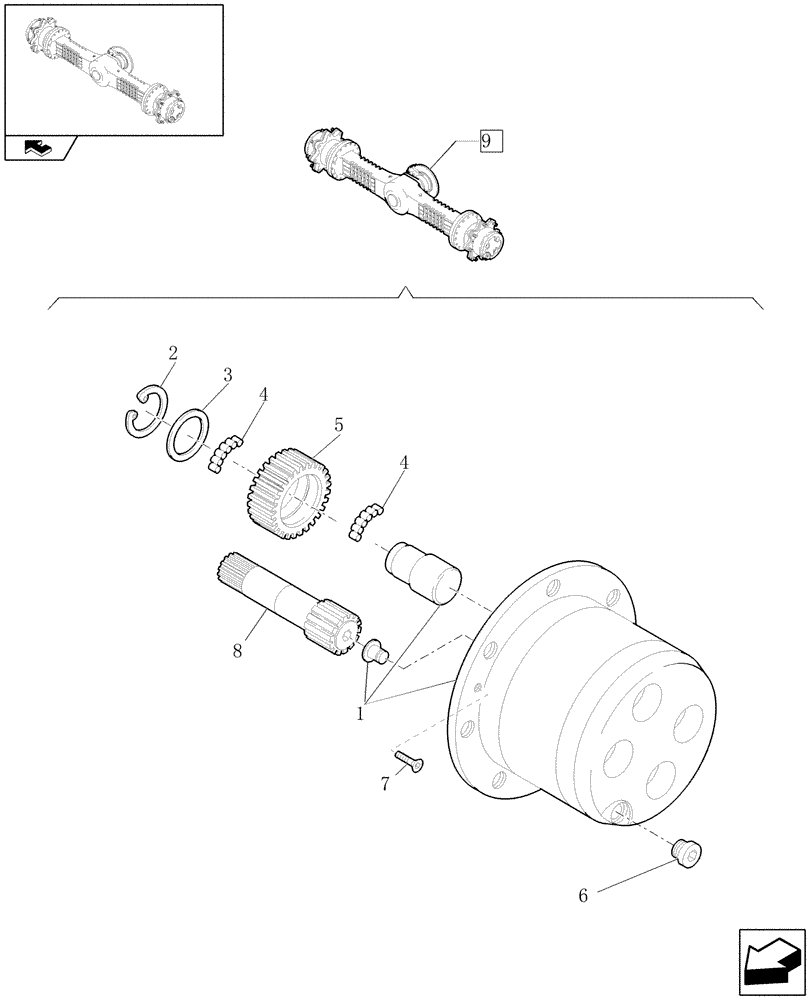

Запчасти Case 321E (076/01[07]) - 20 / 35 KM/H (HIGH SPEED) FRONT RIGID AXLE: WHEEL HUB (04) - FRONT AXLE

1

6914457

PLANET CARRIER

2шт.

2

6914458

LOCKING RING

8шт.

3

6914459

WASHER

8шт.

4

6914460

NEEDLE

, Serial Range: -NCHP00240

44шт.

4

247550A1

NEEDLE BEARING,5 mm OD x 10 mm

, Start Serial: NCHP00241

44шт.

5

6914461

SUN GEAR

8шт.

6

6914415

PLUG

, Serial Range: -NCHP00240

2шт.

6

100557A1

PLUG, DRAIN,M30 x 2

, Start Serial: NCHP00241

2шт.

7

6914462

SCREW

, Serial Range: -NCHP00240

4шт.

7

K395082

SCREW,M8 x 20mm

, Start Serial: NCHP00241

4шт.

8

6914463

SHAFT

2шт.

9

4552433

FRONT AXLE

Assy, Serial Range: -NCHP00240

1шт.

Only for 121E, 221E, 321E

1шт.

9

4552447

FRONT AXLE

Assy, Serial Range: -NCHP00240

1шт.

Only for 121E HS, 221E HS, 321E HS

1шт.

9

84550221

FRONT AXLE

Assy, Start Serial: NCHP00241

1шт.

Only for 121E, 221E, 321E

1шт.

Only for 121E HS, 221E HS, 321E HS

1шт.
