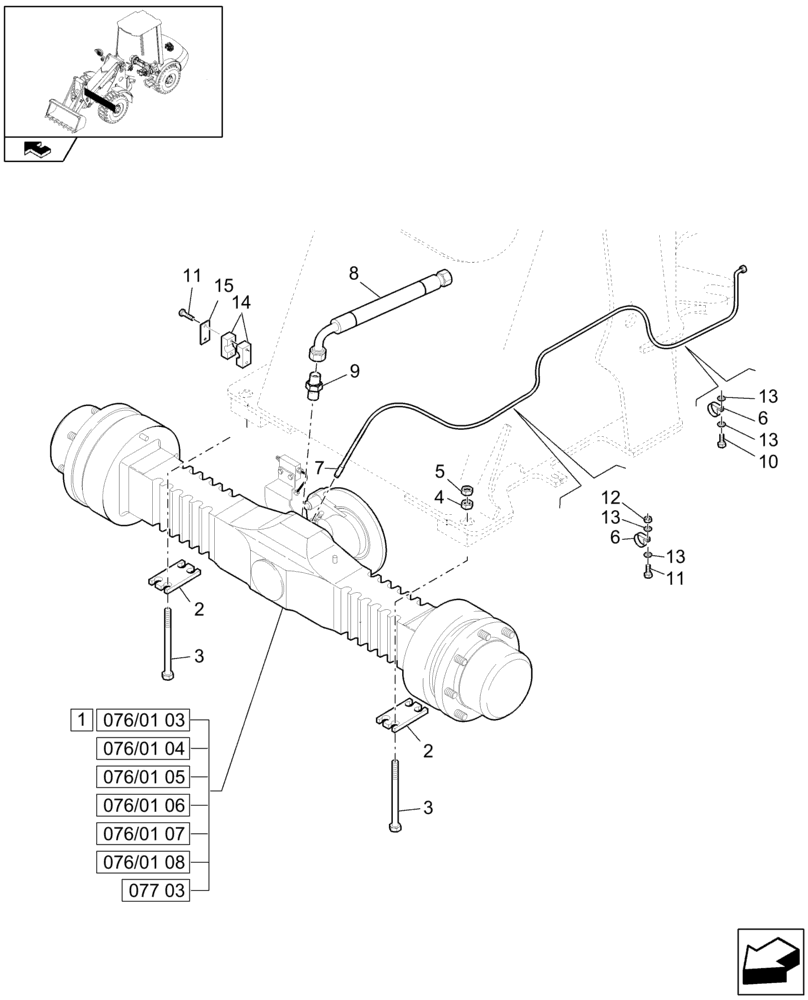

Запчасти Case 321E (076/01[02]) - 20 KM/H FRONT RIGID AXLE (04) - FRONT AXLE

1

4552433

FRONT AXLE

Assy, Serial Range: -NCHP00240

1шт.

1

84550221

FRONT AXLE

Assy, Start Serial: NCHP00241

1шт.

2

2813834

PLATE

2шт.

3

422551

BOLT,Hex, M20 x 260, 8.8

8шт.

4

57136

NUT,M20, Cl 8

8шт.

5

725637

NUT,M20 x 2.5, Cl 8

8шт.

6

925564

HOSE CLAMP

2шт.

7

4552377

CABLE,2550mm L

Parking Brake, Serial Range: -NCHP00240

1шт.

7

84552282

CABLE

Parking Brake, Start Serial: NCHP00241

1шт.

8

4554211

HYDRAULIC HOSE

, Serial Range: -NCHP00240

2шт.

8

4554132

HYDRAULIC HOSE

DN 06x2900mm, Start Serial: NCHP00241

1шт.

9

1768453

HYD CONNECTOR

1шт.

10

7121462

BOLT,Hex, M8 x 14mm, Cl 8.8

1шт.

11

63249

BOLT,Hex, M6 x 35mm, Cl 8.8

2шт.

12

57126

NUT,Hex, M8, Cl 8

1шт.

13

2975165

WASHER

4шт.

14

598084

CLAMP

1шт.

15

505356

PLATE

Plate

1шт.
