(34.004[2991930000]) - OPERATORS CAB ASSEMBLY SET AIR CONDITION STANDARD

Запчасти Case 321E (34.004[2991930000]) - OPERATORS CAB ASSEMBLY SET AIR CONDITION STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

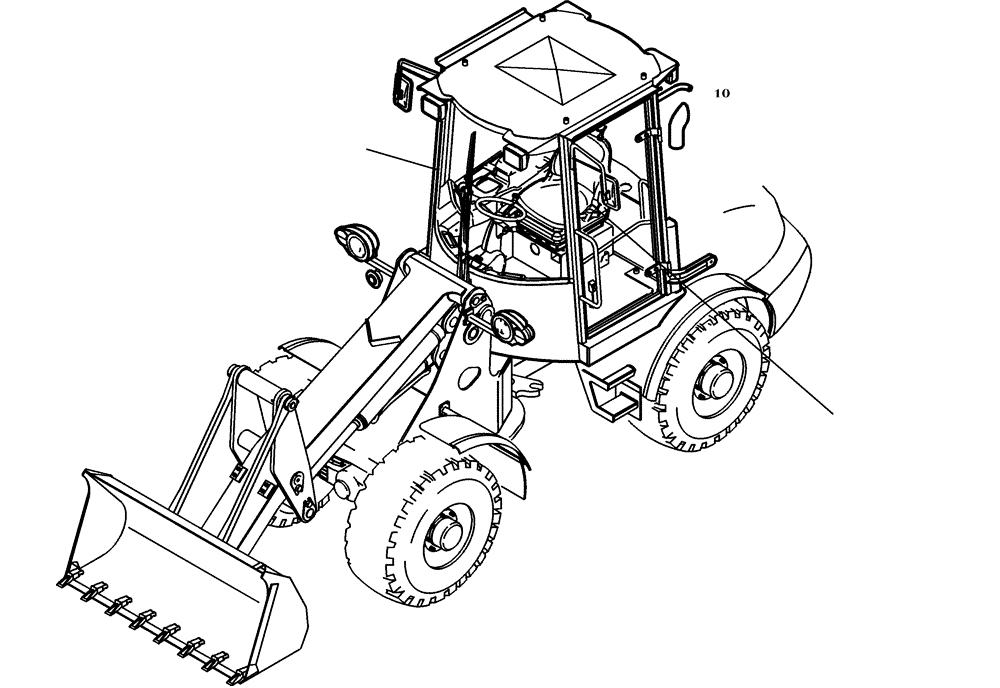

Схема запчастей Case 321E - (34.004[2991930000]) - OPERATORS CAB ASSEMBLY SET AIR CONDITION STANDARD (90) - PLATFORM, CAB, BODYWORK AND DECALS
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Cab Air Condition Standard (2840446) See Fig 34.007

1шт.

2

Operators Seat Installation Mechanical Suspension (2813990) See Fig 34.500

1шт.

10

4552353

EXHAUST SYSTEM PIPE

1шт.

11

4552751

RESERVOIR

Water, Not Shown

1шт.

12

4552510

HYDRAULIC HOSE,M16 x 3150

Not Shown

1шт.

20

Air Condition Insallation (4552321) See Fig 27.400

1шт.

30

725393

BOLT,Hex, M6 x 1 x 70mm, Cl 8.8

Not Shown

2шт.
