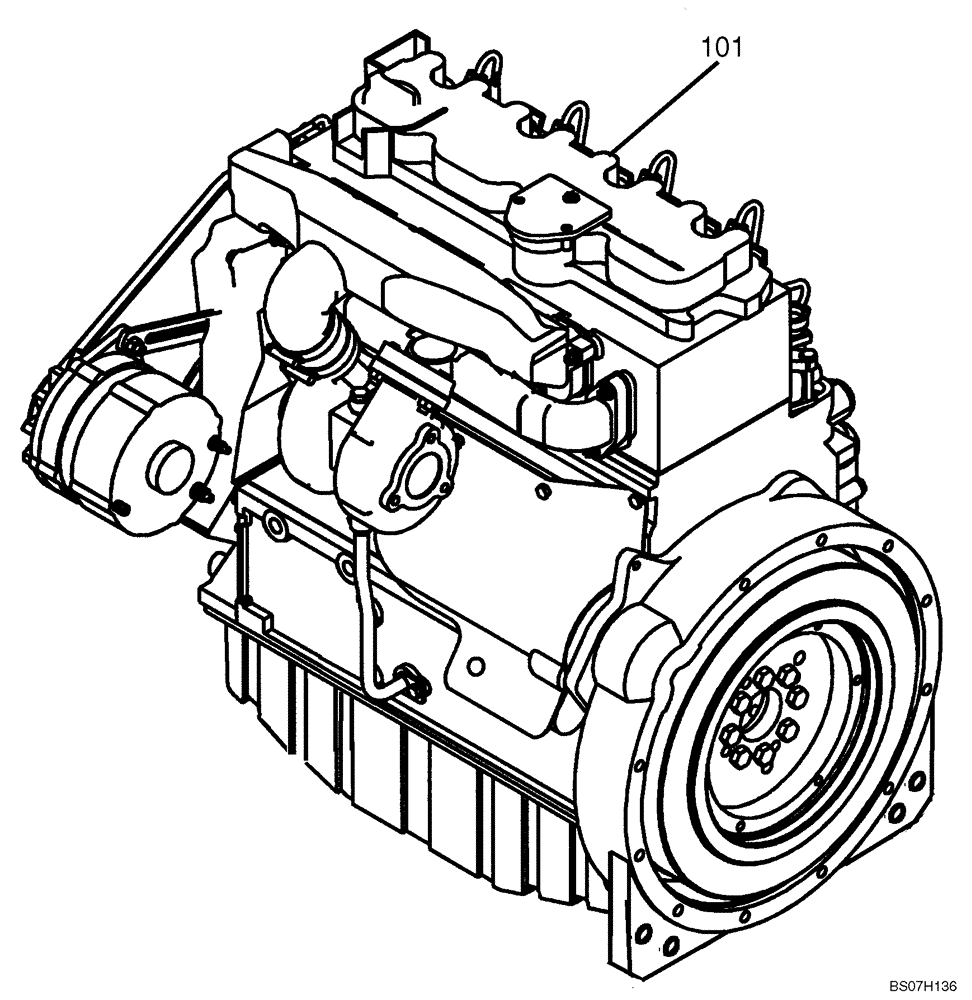

Запчасти Case 321E (95.000[2987081000]) - MOTOR (10) - ENGINE

101

2813823

ENGINE

Motor; Deutz P/N 7504

1шт.

990

Motor (2813602)

1шт.

991

Filler Cap (2432612) See Fig 95.005

1шт.

991

Filter Bracket Sealrein (2987889) See Fig 95.008

1шт.

991

Flywheel (2984871) See Fig 95.004

1шт.

991

Oil Filter (2432618) See Fig 95.007

1шт.

991

Oil Sump (2746518) See Fig 95.002

1шт.

991

Power Take-Off Pully (2139021) See Fig 95.003

1шт.

991

Valve Mechan. Cover (2987840) See Fig 95.008

1шт.

992

Counter Flange (2192779) See Fig 95.041

1шт.

992

Exh.Turbo Charger (2987820) See Fig 95.043

1шт.

992

Exhaust Collector (2987839) See Fig 95.042

1шт.

992

Fuel Filter (2984890) See Fig 95.013

1шт.

992

Fuel Line (2432632) See Fig 95.015

1шт.

992

Fuel Pump (2987818) See Fig 95.014

1шт.

992

Heating Valves (2432620) See Fig 95.009

1шт.

992

Injection Pipe (2987817) See Fig 95.017

1шт.

992

Injection Valve (2987819) See Fig 95.011

1шт.

992

Water Supply Connector (2984886) See Fig 95.010

1шт.

993

Air Shield (2984877) See Fig 95.024

1шт.

993

Generator (2984849) See Fig 95.022

1шт.

993

Bracket (2984854) See Fig 95.029

1шт.

993

Cable Harness (2984881) See Fig 95.036

1шт.

993

Control Unit (2984876) See Fig 95.030

1шт.

993

Engine Mounting (2192711) See Fig 95.027

1шт.

993

Regulator (2984864) See Fig 95.034

1шт.

993

Generator-Fasting Parts (2984894) See Fig 95.025

1шт.

993

Generator (2984849) See Fig 95.022

1шт.

993

Heater Plug (2984882) See Fig 95.036

1шт.

993

Generator-Narrow V-Belt (2987836) See Fig 95.026

1шт.

993

Oil Press.Switch (3932648) See Fig 95.032

1шт.

993

Starter Motor (2984875) See Fig 95.023

1шт.

993

Temp.Transmitter (2432649) See Fig 95.033

1шт.
