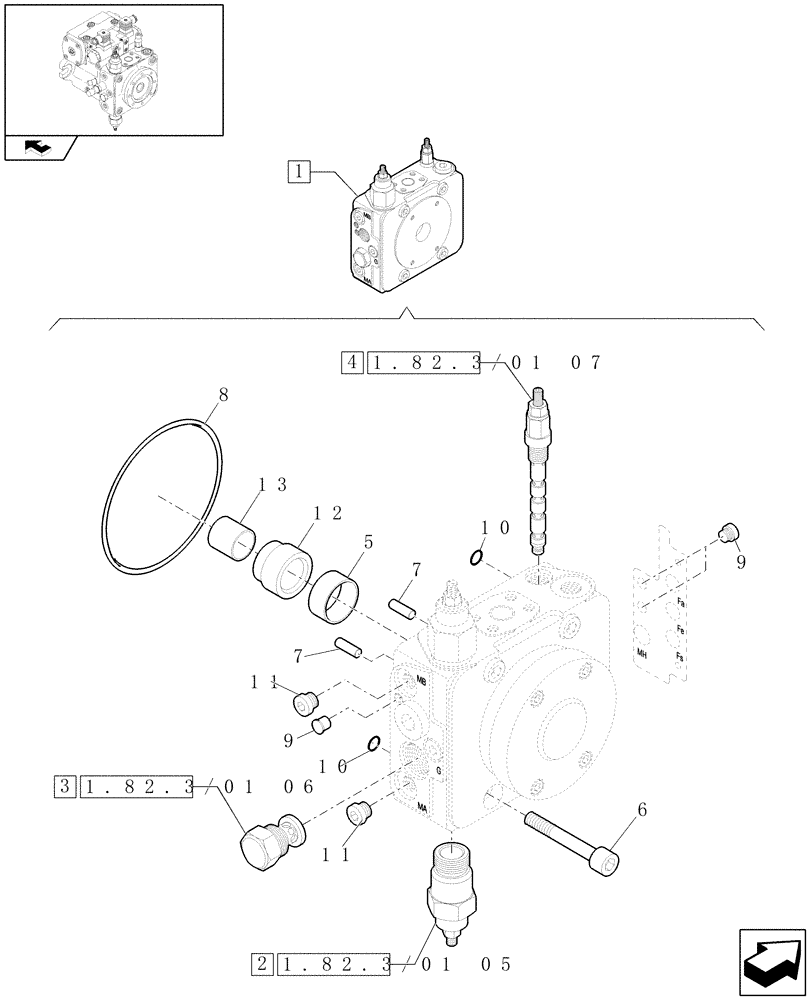

Запчасти Case 221E (1.82.3/01[04]) - AXIAL PUMP DISTRIBUTOR PLATE (07) - HYDRAULIC SYSTEMS

1

1481987

JUNCTION BLOCK

Assy

1шт.

2

1481192

HYDRAULIC VALVE

Assy

2шт.

3

8488269

VALVE PRESSURE RELIE

Assy

1шт.

4

8486163

SHUT-OFF VALVE

Assy

1шт.

5

8486165

BUSHING

1шт.

6

1148138

SCREW

4шт.

7

54279

PIN

2шт.

8

1456674

O-RING,139.97mm ID x 5.693" OD x 2.62mm

1шт.

9

1403736

DRAIN PLUG,M8 x 1

3шт.

10

763075

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

11

970659

PLUG,M12 x 1.5

2шт.

12

1456672

BUSHING

1шт.

13

1456673

BUSHING

1шт.
