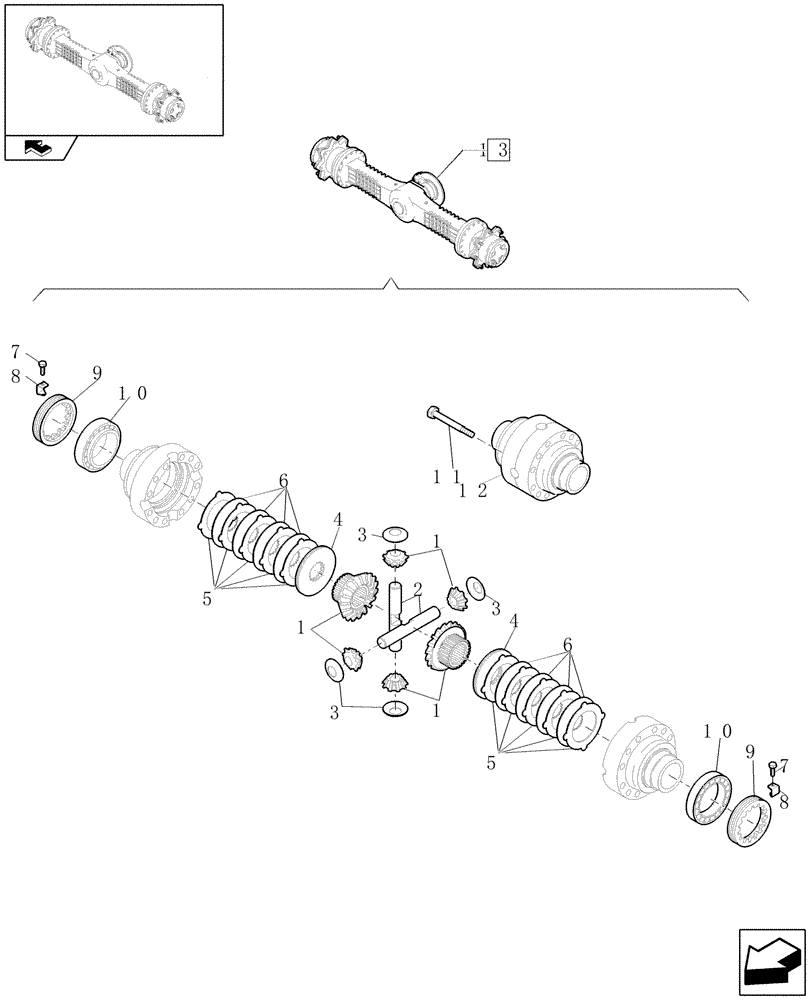

Запчасти Case 221E (076/01[05]) - 20 / 35 KM/H (HIGH SPEED) FRONT RIGID AXLE: SELF-LOCKING DIFFERENTIAL (04) - FRONT AXLE

1

6914428

SET OF PINIONS

Assy, Includes Ref. 2 ,3

1шт.

2

6914429

SHAFT

, Serial Range: -NCHP00240

2шт.

2

N13507

PIN

, Start Serial: NCHP00241

2шт.

3

6914430

CUP WASHER

, Serial Range: -NCHP00240

4шт.

3

K395075

THRUST WASHER

, Start Serial: NCHP00241

4шт.

4

6914431

PLATE

, Serial Range: -NCHP00240

2шт.

4

1966154C1

PLATE

, Start Serial: NCHP00241

2шт.

5

6914432

DISC

, Serial Range: -NCHP00240

10шт.

5

1966155C1

PLATE

, Start Serial: NCHP00241

10шт.

6

6914433

PLATE

, Serial Range: -NCHP00240

8шт.

6

1966156C1

WASHER

, Start Serial: NCHP00241

8шт.

7

6914434

SCREW

, Serial Range: -NCHP00240

2шт.

7

112486A1

BOLT,Hex, M6 x 12

, Start Serial: NCHP00241

2шт.

8

6914435

LOCKING PLATE

2шт.

9

6914436

RING NUT

, Serial Range: -NCHP00240

2шт.

9

1966559C1

NUT

, Start Serial: NCHP00241

2шт.

10

6914437

BEARING CARRIER

, Serial Range: -NCHP00240

2шт.

10

87712543

TAPERED BEARING

, Start Serial: NCHP00241

2шт.

11

6914438

SCREW

, Serial Range: -NCHP00240

12шт.

11

130176A2

BOLT,Hex, M10 x 75mm

, Start Serial: NCHP00241

12шт.

12

6914439

HOUSING

1шт.

13

4552433

FRONT AXLE

Assy, Serial Range: -NCHP00240

1шт.

Only for 121E, 221E, 321E

1шт.

13

4552447

FRONT AXLE

Assy, Serial Range: -NCHP00240

1шт.

Only for 121E HS, 221E HS, 321E HS

1шт.

13

84550221

FRONT AXLE

Assy, Start Serial: NCHP00241

1шт.

Only for 121E, 221E, 321E

1шт.

Only for 121E HS, 221E HS, 321E HS

1шт.
