(02.019[2988871000]) - SWING AXLE INSTALLATION STANDARD WITH PIN

Запчасти Case 221E (02.019[2988871000]) - SWING AXLE INSTALLATION STANDARD WITH PIN (27) - REAR AXLE SYSTEM

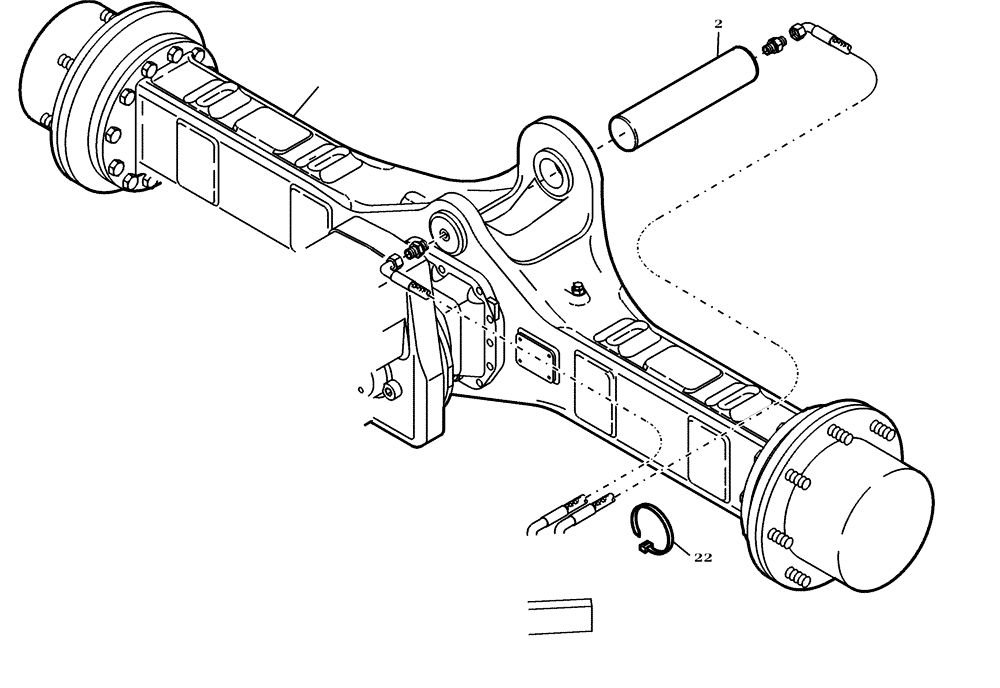

Схема запчастей Case 221E - (02.019[2988871000]) - SWING AXLE INSTALLATION STANDARD WITH PIN (27) - REAR AXLE SYSTEM
22
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Swing Axle Installation Material Standard, (4552475) See Fig 02.020

1шт.

2

2120409

PIN,50mm OD x 265mm L

Replaces 420375A1

1шт.

12

4505471

HYD CONNECTOR

Replaces 420382A1

2шт.

13

69810

NUT

M12 x 1.5, Replaces 420476A1

2шт.

14

38918

LUBE NIPPLE

2шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

18

9706685

NUT,M12 x 1.75, Cl 8

Replaces 825-1412

1шт.

22

726789

CABLE TIE,M4.8 x 188

CABLE STRAP Replaces L11541

2шт.
