(02.059[2988866000]) - RIGID AXLE INSTALLATION HYDRAULIC HOSE SELF-LOCKING

Запчасти Case 221E (02.059[2988866000]) - RIGID AXLE INSTALLATION HYDRAULIC HOSE SELF-LOCKING (25) - FRONT AXLE SYSTEM

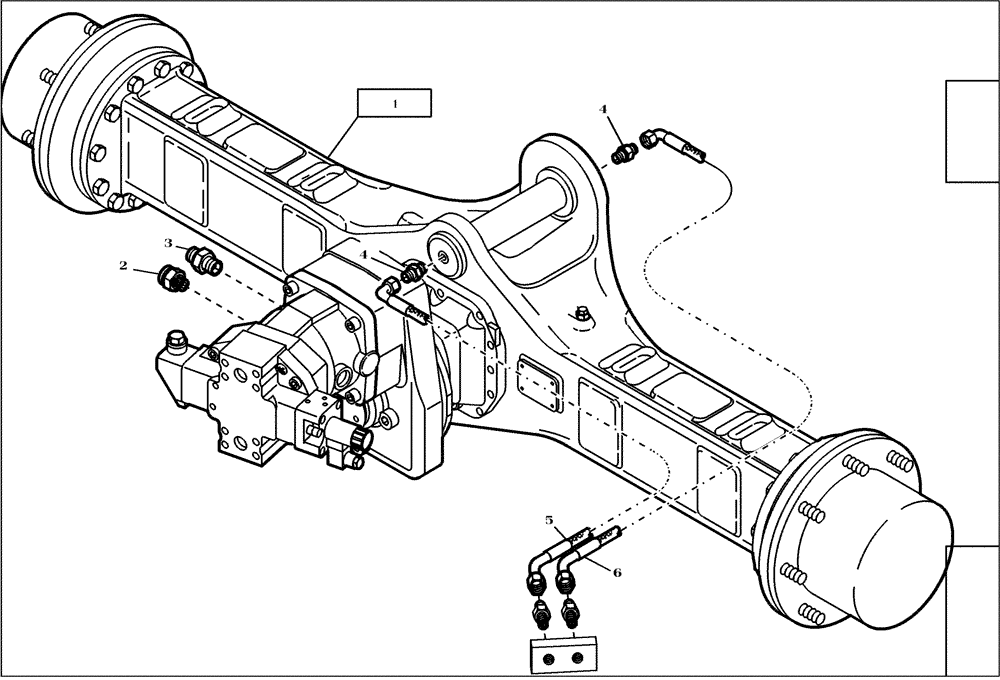

Схема запчастей Case 221E - (02.059[2988866000]) - RIGID AXLE INSTALLATION HYDRAULIC HOSE SELF-LOCKING (25) - FRONT AXLE SYSTEM
2
3
6
1
5
4
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Swing Axle Mounting Parts Self-Locking (4552481), See Fig. 02.021

1шт.

2

1527327

LUBE NIPPLE

Replaces 420381A1

1шт.

3

1148041

HYD CONNECTOR

Replaces 420477A1

1шт.

4

1768453

HYD CONNECTOR

Replaces 420267A1

2шт.

5

2292104

HYDRAULIC HOSE,M5 x 1100

Replaces 420471A1

1шт.

6

2292108

HYDRAULIC HOSE,M5 x 1400

Replaces 420474A1

1шт.
