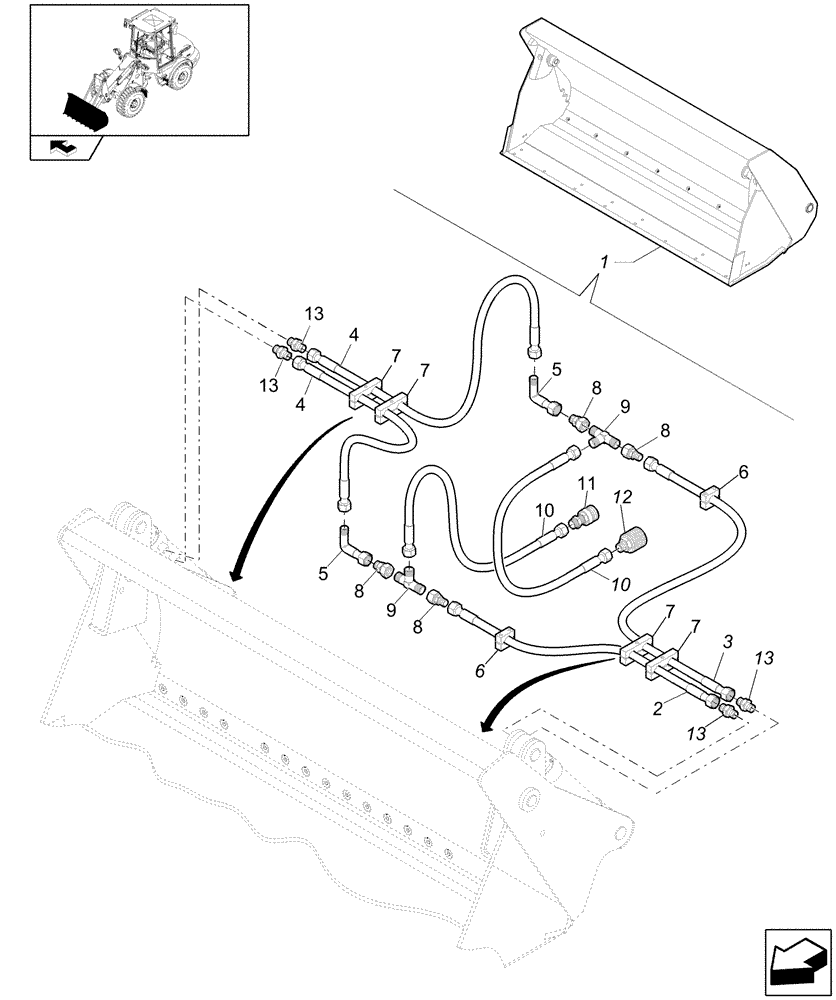

Запчасти Case 221E (64.010[2811789002]) - CLAMSHELL 0,9M3 X 2100-WITH TEETH (82) - FRONT LOADER & BUCKET

1

4554675

CLAMSHELL BUCKET

0,9m³, L=2100mm WITH TEETH

1шт.

See also page 01

1шт.

2

6559804

HOSE,10mm ID x 1085mm L

1шт.

3

6559805

HOSE,10mm ID x 1125mm L

1шт.

4

6560434

HOSE,10mm ID x 985mm L

2шт.

5

1636005

ELBOW

2шт.

6

620803

RING

2шт.

7

6560407

CLAMP,2 Hole, 18mm ID

4шт.

8

7723935

ADAPTER

4шт.

9

1186676

TEE

2шт.

10

6559807

HOSE,12mm ID x 1030mm L

2шт.

11

2930202

COUPLING

1шт.

12

2930201

COUPLING

1шт.

13

2268429

HYD CONNECTOR

4шт.
