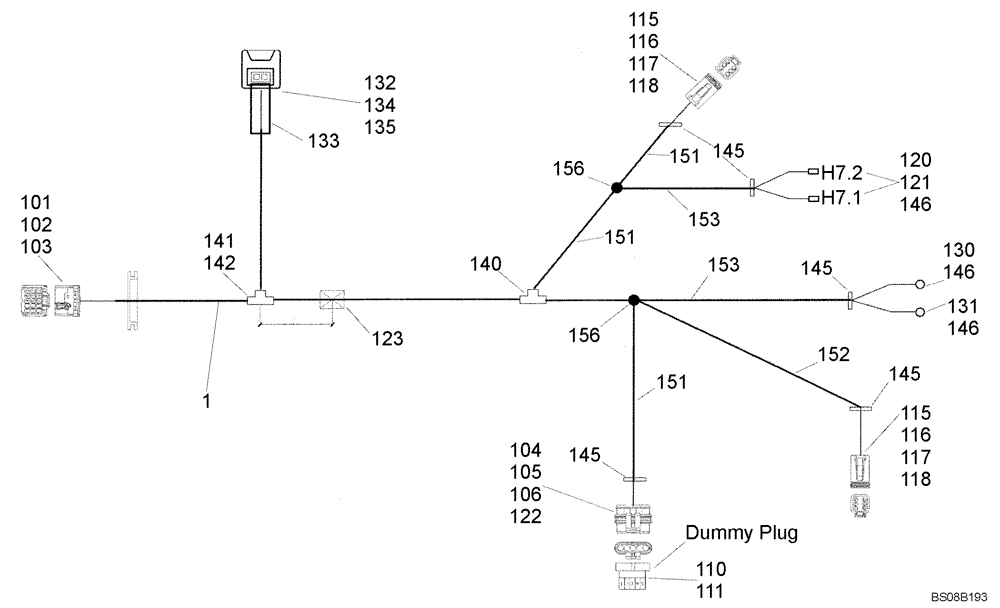

Запчасти Case 221E (32.133[2991958000]) - WIRE HARNESS FRONT CARRIAGE (55) - ELECTRICAL SYSTEMS

1

3004874

WIRE HARNESS

1шт.

101

2929775

MULTIPOLE CONNECTOR,18 Pole

BUSH HOUSING MCP 18-POL. 8-968974-1 AMP

1шт.

102

2929772

CONTACT HOUSING

CONTACT SLEEVE 0,5-1,0 1-968849-1 AMP

11шт.

103

2929773

CONTACT HOUSING

CONTACT SLEEVE 1,0-2,5 1-968851-1 AMP

4шт.

104

2929140

HOUSING

HOUSING 5POL SUPERSEAL 282089-1 AMP

1шт.

105

2928185

CABLE TERMINAL

BUSHING CONTACT 0,75-1,5 C-282110 AM, Replaces 424098A1

5шт.

106

2928184

GASKET

4 AMP , Replaces 424097A1

5шт.

110

2929138

CONTACT HOUSING,5 Pole

PIN HOUSING 5POL SUPERSEAL 282107-1 AMP

1шт.

111

2929160

PLUG

DUMMY PLUG

5шт.

115

2928232

CONTACT HOUSING

RECEPTACLE HOUSING DT 06-6S DEUT, Replaces 421024A1

2шт.

116

2928247

LOCKING TAB

6POL , Replaces 421025A1

2шт.

117

2928240

ELEC. TERMINAL PIN

CONTACT PIN 1-0,5QMM 1060-20-0122 DEUT

10шт.

118

7229705

PLUG

KONTAKT 12(14,16) 114017 DEUT , Replaces 421029A1

2шт.

120

4160261

TERMINAL

Replaces 421053A1

2шт.

121

2978339

TERMINAL

PLUG-IN SLEEVE DIN 46247-6,3X2,5-MS

2шт.

122

2929143

CAP

CAP 5-POL 7MM SUPERSEAL 467354 WOELF

1шт.

123

2928191

MULTIPOLE CONNECTOR

CONNECTOR 6,0-10,0 34318-0 AMP

1шт.

130

2974541

TERMINAL

CABLE THIMBLE DIN 46234-4-2,5

1шт.

131

2974542

TERMINAL

CABLE THIMBLE DIN 46234-6-2,5

1шт.

132

2980857

CONTACT HOUSING,Male, 2 Pin

HOUSING JUNIOR-TIMER 963040-3 AMP

1шт.

133

2268584

COVER

CAP 2POL. 5MM SUPERSEAL 880810-2 AMP

1шт.

134

2700245

CONTACT

CONTACT JUNIOR-TIMER 929940-1 AMP , Replaces 424264A1

2шт.

135

2700246

GASKET

Replaces 424265A1

2шт.

145

94919

CABLE TIE

CABLE STRAP CABLE TIE T80I 4,7x300 111-08290, Replaces 421076A1

5шт.
