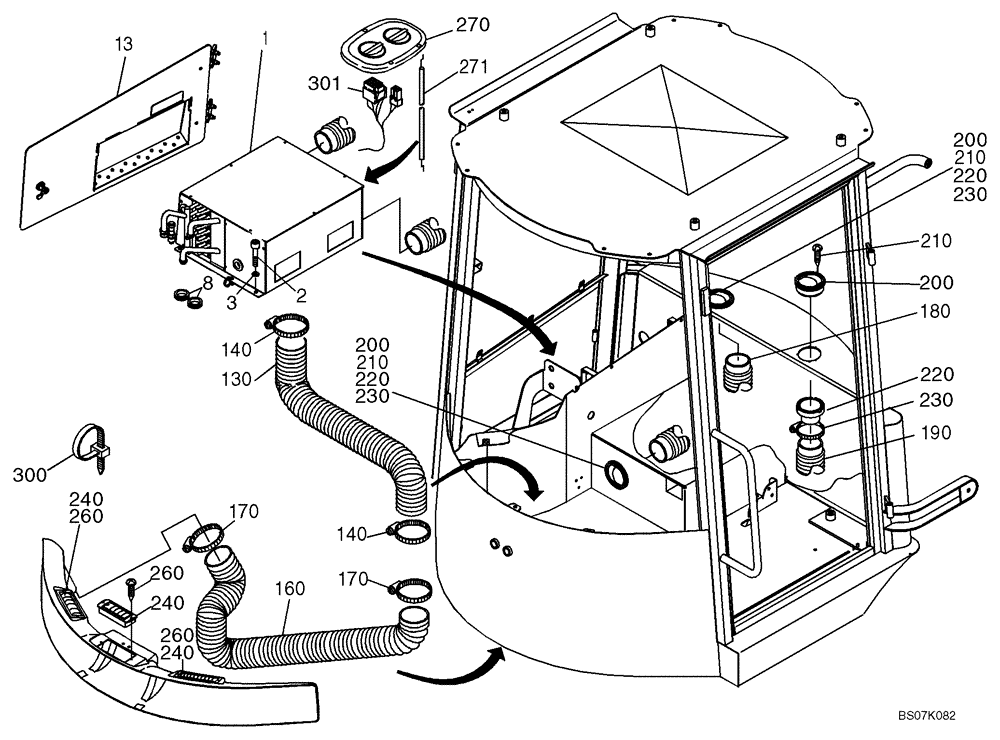

Запчасти Case 221E (27.012[2990949000]) - HEATING INSTALLATION HIGH PERFORMANCE (OPTION) (50) - CAB CLIMATE CONTROL

1

6915555

UNIT HEATER

See Fig 27.013

1шт.

2

6100018

SCREW

4шт.

3

1482395

WASHER

4шт.

8

NS

NOT SERVICED

Washers

2шт.

13

3805107

INSPECTION DOOR

See Fig 34.282

1шт.

130

1482716

AIR DUCT

500mm

1шт.

140

1482428

CLIP

2шт.

160

1482716

AIR DUCT

500mm

1шт.

170

1482428

CLIP

2шт.

180

1482718

AIR DUCT

500mm

1шт.

190

1482718

AIR DUCT

500mm

1шт.

200

1482311

VENT

3шт.

210

1482358

SELF-TAP SCREW

3.5 x 13mm Self Tapping

9шт.

220

1482415

ADAPTER

3шт.

230

1482688

CLAMP

4шт.

240

6912000

VENT

3шт.

260

1482359

SELF-TAP SCREW,M3.50 x 13mm

3.5 x 13mm Self Tapping

9шт.

270

6100015

CONTROL

Heater Control Switch; Blower Speed and Temperature, See Fig 27.014

1шт.

271

3805230

FLEXIBLE CONTROL

1шт.

300

1493697

RETAINING PLATE

1шт.

301

3004865

WIRE HARNESS

See Fig 32.273

1шт.
