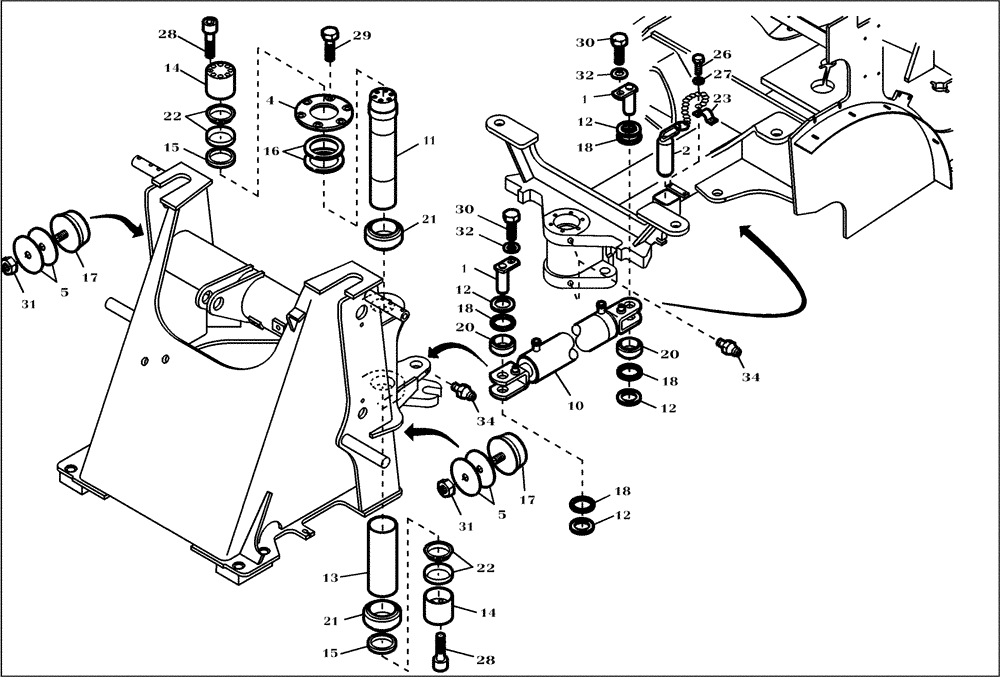

Запчасти Case 221E (01.450[2991435000]) - ARTICULATED JOINT (39) - FRAMES AND BALLASTING

1

512166

PIN,6.35mm OD x 22.23mm L

Replaces 422125A1

2шт.

2

4550217

PIN,45mm OD

Replaces 420229A1

1шт.

4

1710003

COVER

Replaces 421649A1

1шт.

10

6559546

STEERING CYLINDER,32mm Rod, 300mm Stroke

See Fig 24.122

1шт.

11

1710002

ROLL PIN

Replaces 421650A1

1шт.

12

4552174

WASHER

4шт.

13

1710014

SLEEVE,80.2mm ID x 96.5mm OD x 179mm L

Replaces 421651A1

1шт.

14

1710013

PIN

Replaces 421652A1

2шт.

15

1710015

RING

Replaces 421653A1

2шт.

16

1710004

WASHER

Replaces 421654A1

2шт.

18

750585

GASKET

4шт.

20

2929701

SPHERICAL BEARING,25mm ID x 42mm OD x 20mm W

2шт.

21

306270

SPHERICAL BEARING

Replaces 421655A1

2шт.

22

215196

CLAMP

Replaces 421656A1

4шт.

23

2900981

RETAINER

Replaces 420265A1

1шт.

26

2975136

SCREW,Hex, M4 x 0.7 x 12mm, Cl 8.8

2шт.

27

3233254R1

WASHER,M4.3 ID x 9 OD x .8 Thk

2шт.

28

264227

SCREW,Hex Soc Hd, M12 x 50mm, Cl 10.9

16шт.

29

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

6шт.

30

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

2шт.

32

530811

WASHER

Replaces 420197A1

2шт.

34

8412011

LUBE NIPPLE

Replaces 420268A1

2шт.
