(02.210[2988825000]) - REAR AXLE FAST GEAR SELF-LOCKING WITH PIN

Запчасти Case 221E (02.210[2988825000]) - REAR AXLE FAST GEAR SELF-LOCKING WITH PIN (27) - REAR AXLE SYSTEM

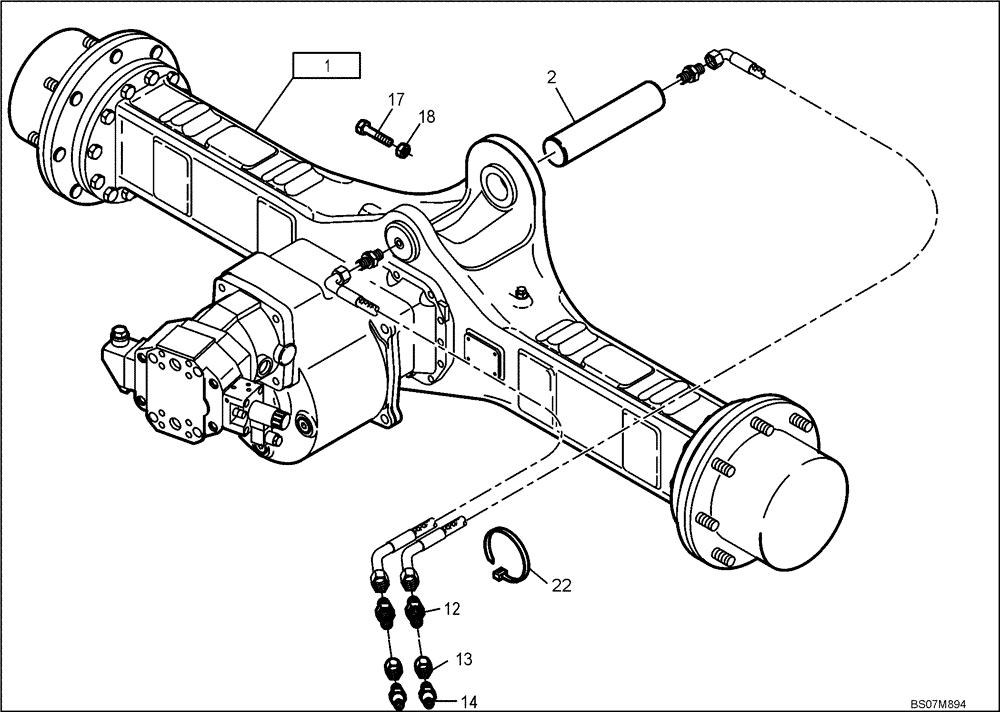

Схема запчастей Case 221E - (02.210[2988825000]) - REAR AXLE FAST GEAR SELF-LOCKING WITH PIN (27) - REAR AXLE SYSTEM
22
14
18
13
2
1
12
17
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Rear Axle Fast Gear Self-Locking (4552486), See Fig 02.211

1шт.

2

420375A1

PIN

Replaces 420375A1

1шт.

12

420382A1

HYD CONNECTOR

Replaces 420382A1

2шт.

13

69810

NUT

M12 x 1.5, Replaces 420476A1

2шт.

14

38918

LUBE NIPPLE

2шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

18

57130

NUT,M12, Cl 8

Replaces 825-1412

1шт.

22

726789

CABLE TIE,M4.8 x 188

CABLE STRAP Replaces L11541

2шт.
