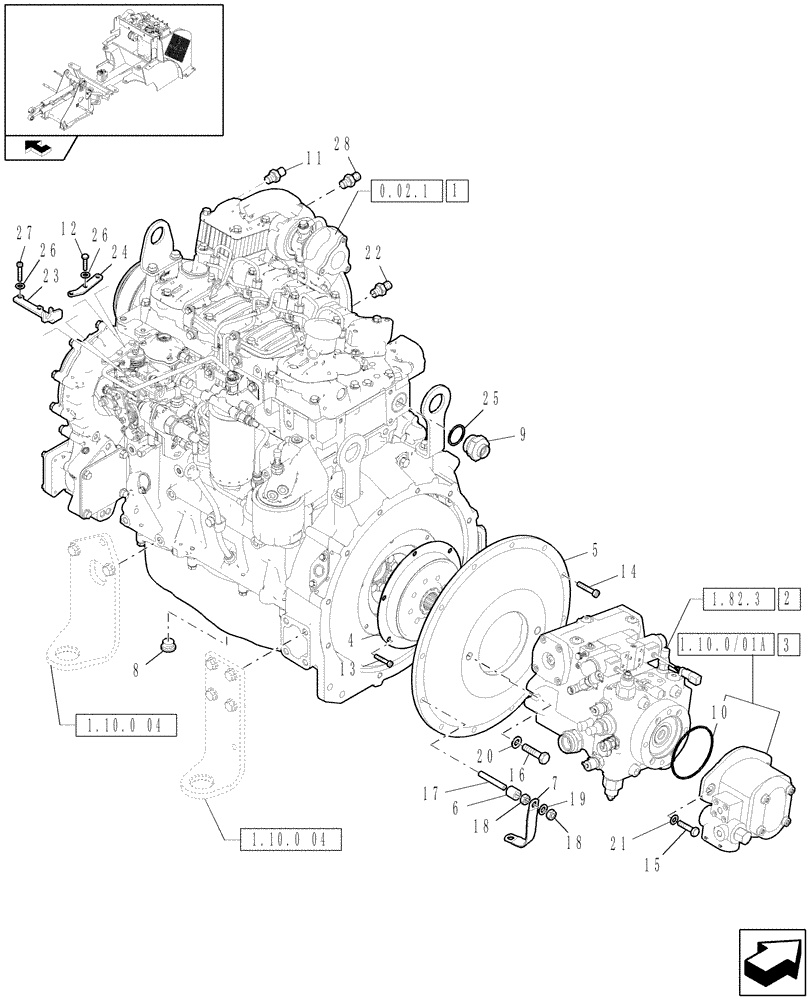

Запчасти Case 21E (1.10.0/04) - ENGINE INSTALLATION AND COMPONENTS (01) - ENGINE

1

6551338

ENGINE

Assy

1шт.

6551338ER

REMAN-REPLACEMENT EN

21E SERIES 3, w/F5C 4 Cyl. 2 Valve Engine (11/07)

1шт.

6551338EPAC

CORE-EPA ENGINE

Return Number

1шт.

1

6551338R

EXCHANGE ENGINE

21E SERIES 3, w/F5C 4 Cyl. 2 Valve Tier 3 Engine (11/07)

1шт.

6551338C

CORE-ENGINE

Return Number

1шт.

47456816R

REMAN-BASIC ENGINE

21E Series 3 w/F5C 4 Cyl., 2 Valve Tier 3 Engine, (11/07)

1шт.

47456816C

CORE-BASIC ENGINE

Return Number

1шт.

2

87667154

HYDROSTATIC PUMP

Assy

1шт.

3

87635154

HYDRAULIC PUMP,22.5 CC

1шт.

4

2813835

CLUTCH,215.8mm OD

1шт.

5

87667145

COUPLING FLANGE

1шт.

6

501046

BUSHING

1шт.

7

84177008

GROUND STRAP

1шт.

8

84198671

DRAIN PLUG

1шт.

9

87702496

UNION

1шт.

10

1448971

O-RING

1шт.

11

87700250

THERMOSTATIC SWITCH

1шт.

12

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

13

2977405

SCREW

6шт.

14

56707

HEX SOC SCREW,M10 x 25mm, Cl 8.8

10шт.

15

43260

BOLT,Hex, M12 x 1.75 x 30mm, Cl 10.9, Full Thd

1шт.

16

374835

BOLT,Hex, M16 x 2 x 40mm, Cl 10.9, Full Thd

2шт.

17

1768777

STUD

1шт.

18

57127

NUT,M10, Cl 8

2шт.

19

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

1шт.

20

1836970

WASHER

2шт.

21

260082

WASHER

2шт.

22

642560

FITTING,5/8" Hose x 3/8" NPTF Beaded

1шт.

23

87692493

HOLDER

1шт.

24

6551504

LEVER

1шт.

25

10265160

SEALING WASHER,35.4mm ID x 41mm OD x 1.5mm Thk

1шт.

26

2372234

WASHER

4шт.

27

84139321

SCREW

2шт.

28

87709775

SENSOR

1шт.
