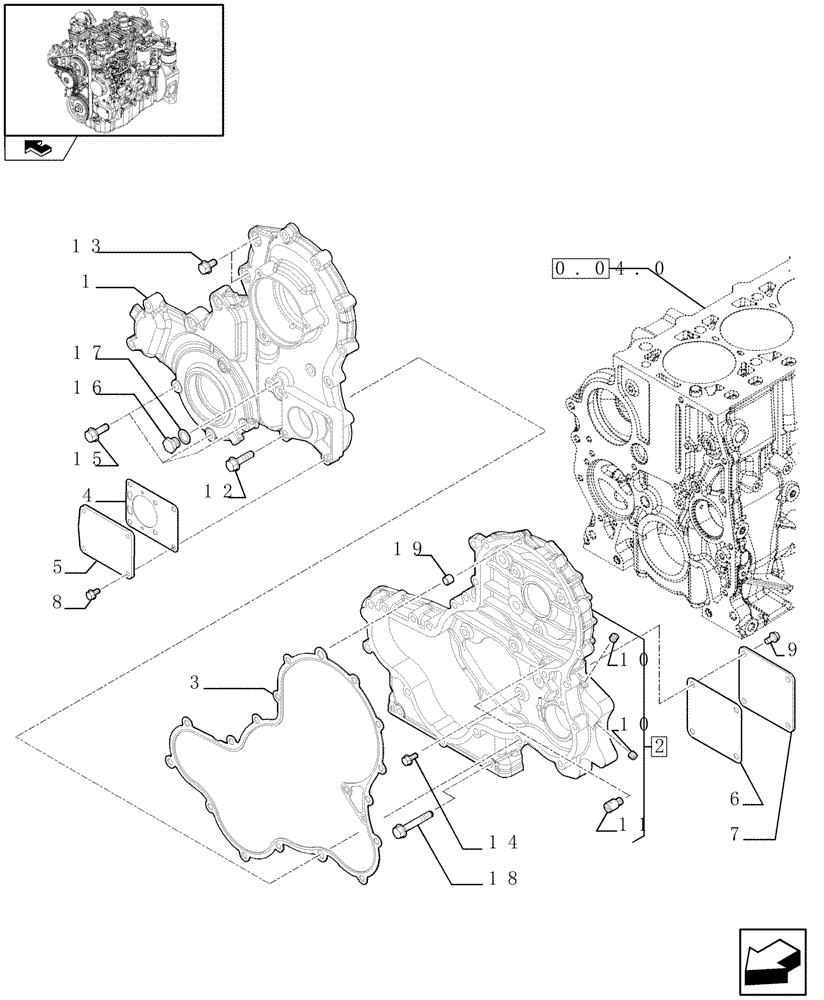

Запчасти Case 21E (0.04.3[01]) - ENGINE BLOCK FRONT COVER (01) - ENGINE

1

504291010

COVER

1шт.

2

504240750

HOUSING

- ASSY

1шт.

3

504242801

GASKET

1шт.

4

504092108

GASKET

1шт.

5

564530

COVER

1шт.

6

2853840

GASKET,0.8mm Thk

1шт.

7

2853841

COVER

1шт.

8

16585724

BOLT,M6 x 16mm, Cl 8.8

M6 x 16

4шт.

9

2854311

SCREW,Hex, Flg Hd, M8 x 1.25 x 18mm

M8 x 1.5 x 18

4шт.

10

504051236

PLUG,Threaded, 1/8"

1/8" dia

3шт.

11

504204989

LUBE OIL NOZZLE

LUBE OIL JET NOZZLE

1шт.

12

16586624

SCREW,M8 x 35mm

M8 x 35

15шт.

13

4798845

BOLT,M8 x 1.25 x 16.50mm

2шт.

14

98401723

BOLT,Hex, M8 x 1.25 x 12mm

M8 x 1.5 x 12

5шт.

15

16586424

SCREW,M8 x 25mm

M8 x 25

3шт.

16

10300611

PLUG,M14 x 1.5 x 14, Cl5.8

1шт.

17

2852356

SEALING WASHER

M14 x 20 x 1.5

1шт.

18

16586924

BOLT,Hex, M8 x 50mm

M8 x 50

6шт.

19

99435557

DOWEL,8.50mm Dia

M8.5

4шт.
