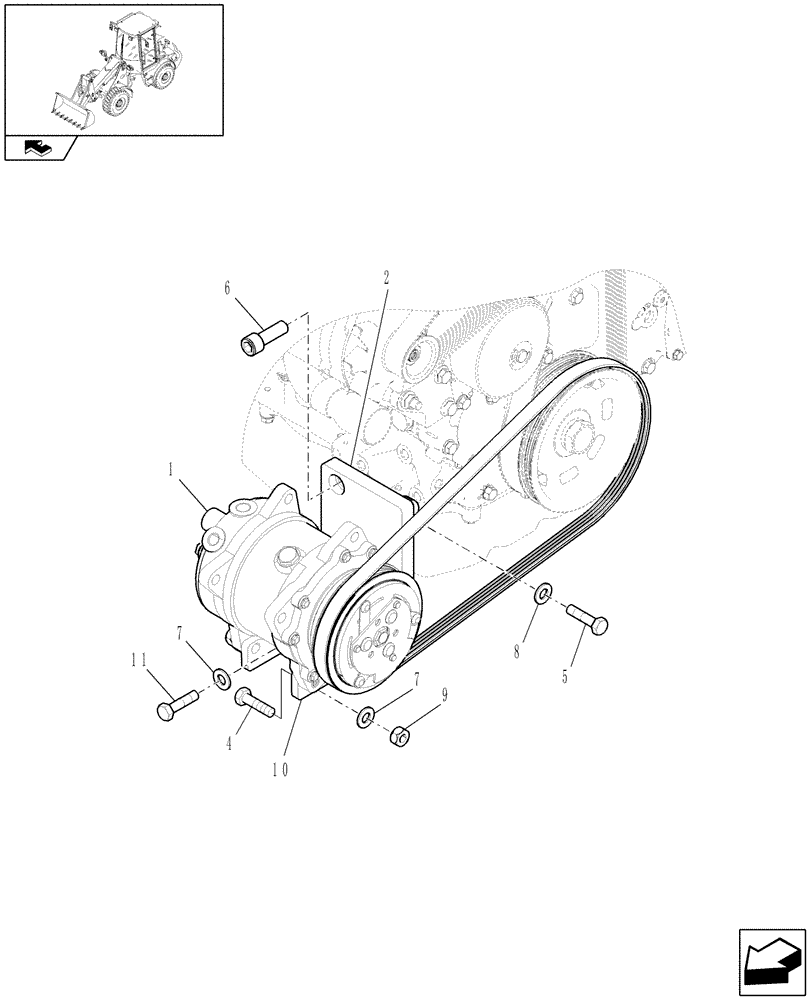

Запчасти Case 21E (440[04]) - COMPRESSOR INSTALLATION FOR A/C (10) - OPERATORS PLATFORM

1

84129848

AIRCOND. COMPRESSOR

Assy

1шт.

2

6551390

HOLDER

, Serial Range: -09/11

1шт.

3

87709821

V-BELT,3.56 mm W x 1020.00 mm L, 4 Ribs

1шт.

4

56662

BOLT,Hex, M10 x 35mm, Cl 8.8

4шт.

5

56668

BOLT,Hex, M12 x 25mm, Cl 8.8

, Serial Range: -09/11

1шт.

6

14422134

HEX SOC SCREW,M12 x 1.75 x 35mm, Cl 10.9, Full Thd

, Serial Range: -09/11

2шт.

7

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

5шт.

8

2975164

WASHER

, Serial Range: -09/11

1шт.

9

57127

NUT,M10, Cl 8

4шт.

10

87754578

FORK

1шт.

11

80056664

WHEEL

1шт.
