(691[02]) - (0.7 M³) X 1900 MM STANDARD BUCKET WITH BOLTED TEETH - AFTER DATE 15 JUNE, 2011

Запчасти Case 21E (691[02]) - (0.7 M³) X 1900 MM STANDARD BUCKET WITH BOLTED TEETH - AFTER DATE 15 JUNE, 2011 (09) - LOADER/BACKHOE

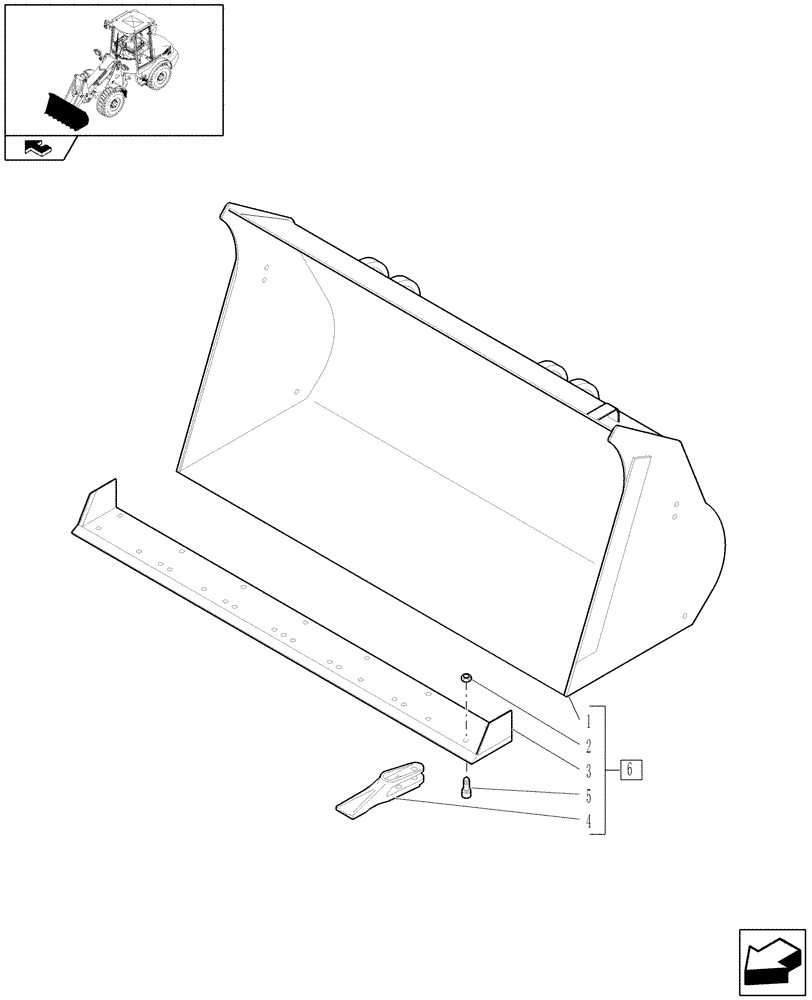

Схема запчастей Case 21E - (691[02]) - (0.7 M³) X 1900 MM STANDARD BUCKET WITH BOLTED TEETH - AFTER DATE 15 JUNE, 2011 (09) - LOADER/BACKHOE
4
1
5
3
6
2
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

NSS

NOT SOLD SEPARAT

1шт.

2

86625067

NUT,5/8"-11, G8

14шт.

3

2772867

CUTTING EDGE

1шт.

4

85820232

LUG

7шт.

5

85801371

PLOW BOLT,#3, 5/8" - 11 x 2 1/4", Cl 12.9

14шт.

6

84206246

BUCKET

Assy

1шт.
