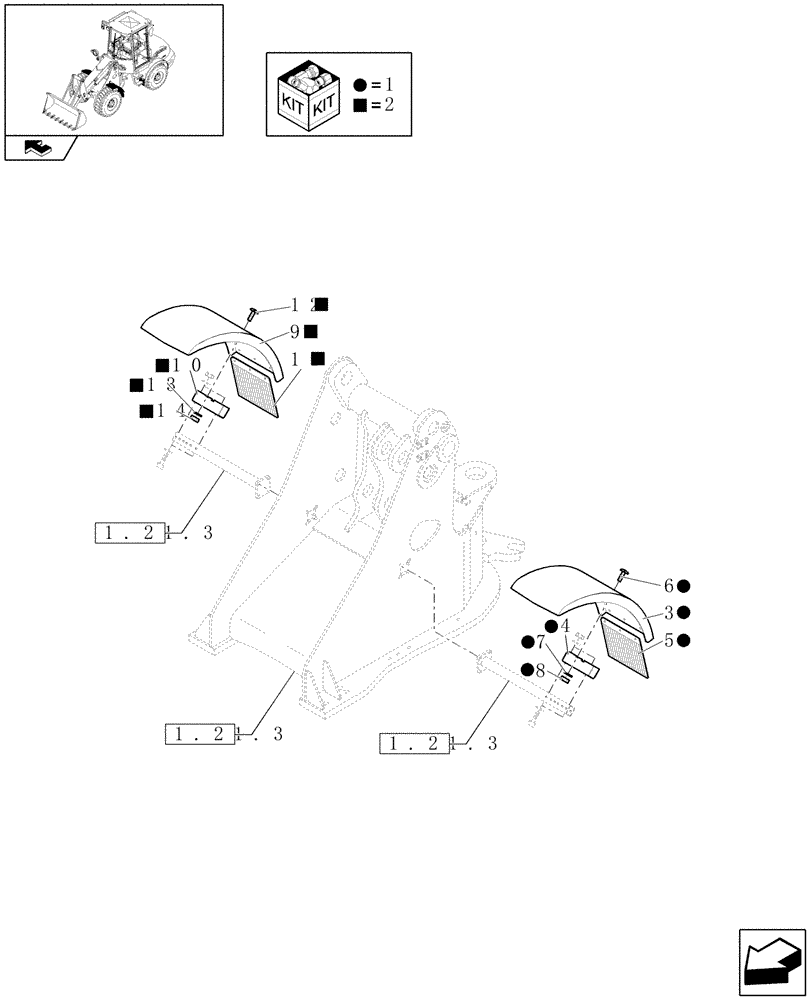

Запчасти Case 21E (1.87.4[02]) - FRONT WHEEL GUARD, UP TO DATE MAR 14, 2013 (08) - SHEET METAL/DECALS
![Схема запчастей Case 21E - (1.87.4[02]) - FRONT WHEEL GUARD, UP TO DATE MAR 14, 2013 (08) - SHEET METAL/DECALS](https://partsell.ru/storage/images/casece/879827.png)
12
1
9
14
2
13
2
10
1
1
1
1.21.3
home
1.21.3
1.21.3
2
1
2
11
2
3
2
1
5
6
1
8
7
1
2
4
2
1
4552871
FRONT FENDER
Assy, Left
1шт.
2
4552872
FRONT FENDER
Assy, Right
1шт.
3
4552873
FRONT FENDER
1шт.
4
2813997
SUPPORT
1шт.
5
1758982
FRONT FENDER
1шт.
6
54405
BOLT,Hex, M8 x 25, 8.8
6шт.
7
62543
WASHER
12шт.
8
68841
NUT,M8 x 1.25, Cl 8
6шт.
9
4552873
FRONT FENDER
1шт.
10
2813997
SUPPORT
1шт.
11
1758982
FRONT FENDER
1шт.
12
54405
BOLT,Hex, M8 x 25, 8.8
6шт.
13
62543
WASHER
12шт.
14
68841
NUT,M8 x 1.25, Cl 8
6шт.
