(1.87.4[01A]) - FRONT AND REAR WHEEL GUARD, FROM DATE MAR 15, 2013

Запчасти Case 21E (1.87.4[01A]) - FRONT AND REAR WHEEL GUARD, FROM DATE MAR 15, 2013 (08) - SHEET METAL/DECALS

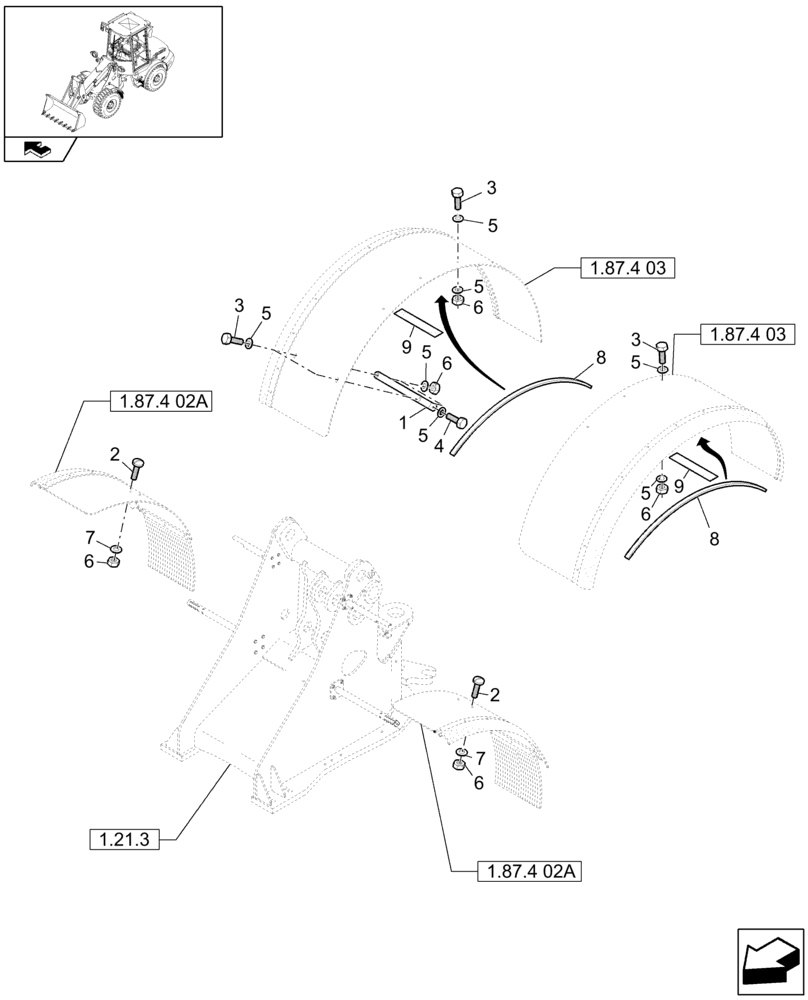

Схема запчастей Case 21E - (1.87.4[01A]) - FRONT AND REAR WHEEL GUARD, FROM DATE MAR 15, 2013 (08) - SHEET METAL/DECALS
2
6
3
6
8
7
home
5
7
9
8
1
5
1.87.4 02a
1.87.4 03
3
6
1.87.4 03
1.21.3
3
5
6
2
4
5
9
5
1.87.4 02a
6
5
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4552189

RETAINER

Grey

1шт.

2

2929702

HEX SOC SCREW,M8 x 20mm L

M8 x 20mm, Cl 10.9

6шт.

3

54405

BOLT,Hex, M8 x 25, 8.8

M8 x 25mm, Cl 8.8

12шт.

4

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

1шт.

5

62543

WASHER

A8.4-100HV DIN9021

28шт.

6

68841

NUT,M8 x 1.25, Cl 8

19шт.

7

2975165

WASHER

4шт.

8

2928063

SEAL

1шт.

9

4150664

SEAL

1шт.

Выбрано товаров: 9
