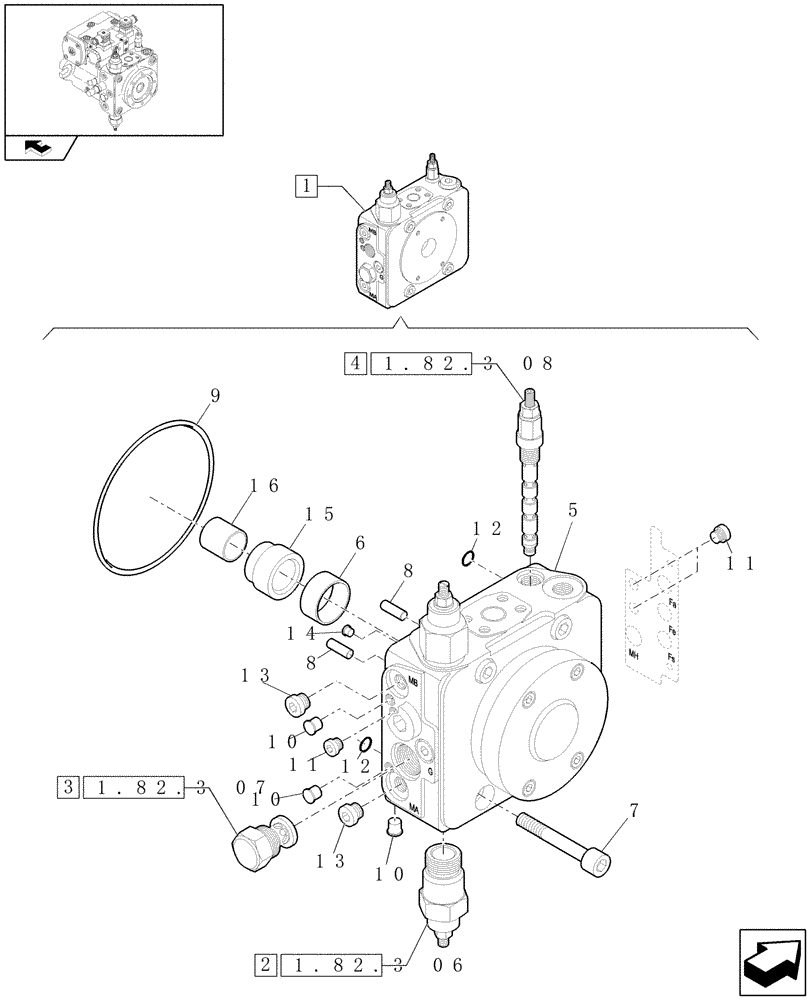

Запчасти Case 21E (1.82.3[05]) - AXIAL PUMP DISTRIBUTOR PLATE (07) - HYDRAULIC SYSTEMS

1

1474587

DISTRIBUTOR

Assy

1шт.

2

1481185

HYDRAULIC VALVE

Assy

1шт.

3

8488269

VALVE PRESSURE RELIE

Assy

1шт.

4

8110125

SHUT-OFF VALVE

Assy

1шт.

5

1473295

DISTRIBUTOR

1шт.

6

1464797

BUSHING

1шт.

7

1864589

HEX SOC SCREW,M12 x 70mm, Cl 10.9

4шт.

8

13893

PIN

2шт.

9

1422029

O-RING

1шт.

10

8486166

PLUG

3шт.

11

1403736

DRAIN PLUG,M8 x 1

3шт.

12

763075

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

2шт.

13

970659

PLUG,M12 x 1.5

2шт.

14

1470203

PLUG

1шт.

15

1461943

BUSHING

1шт.

16

1461944

BUSHING

1шт.
