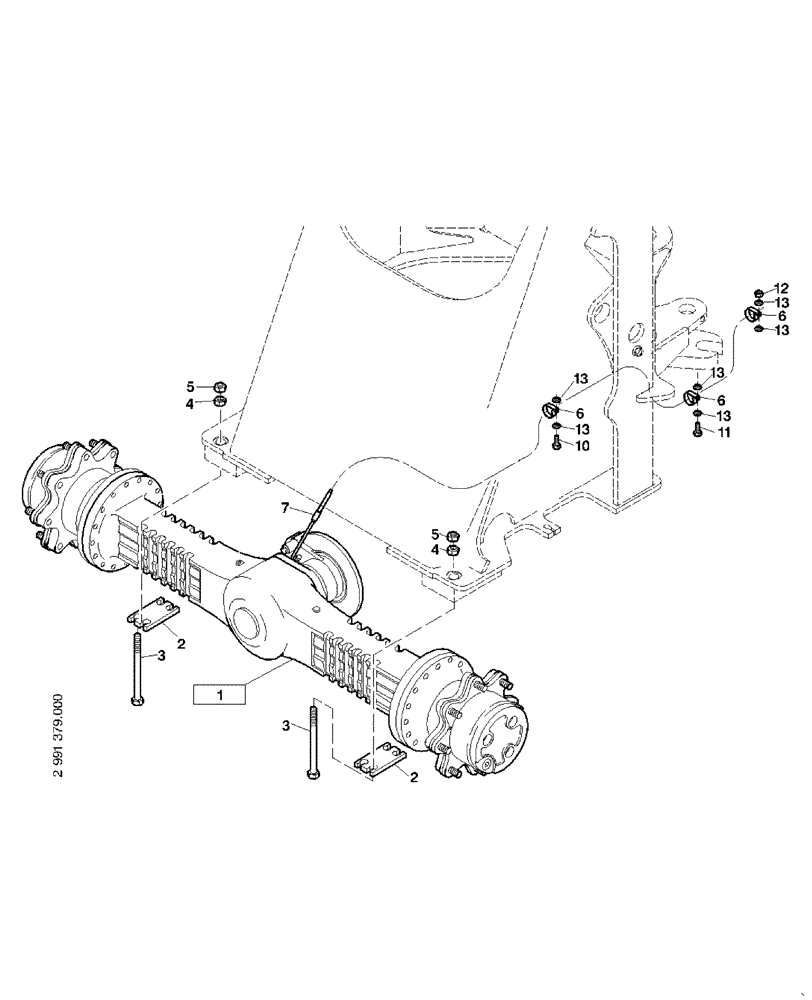

Запчасти Case 21E (02.060[2991379000]) - RIGID AXLE INSTALLATION STANDARD (25) - FRONT AXLE SYSTEM

1

Rigid Axle Mount Parts Standard, (2772418) See Fig 02.061

1шт.

2

2813834

PLATE

2шт.

3

422551

BOLT,Hex, M20 x 260, 8.8

8шт.

4

825-1420

NUT,M20, Cl 8

8шт.

5

725637

NUT,M20 x 2.5, Cl 8

8шт.

6

925564

HOSE CLAMP

3шт.

7

4552377

CABLE,2550mm L

Parking or Emergency

1шт.

10

7121462

BOLT,Hex, M8 x 14mm, Cl 8.8

2шт.

11

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

1шт.

12

43362

NUT,M8 x 1.25, Cl 10

1шт.

13

2975165

WASHER

M8

6шт.
