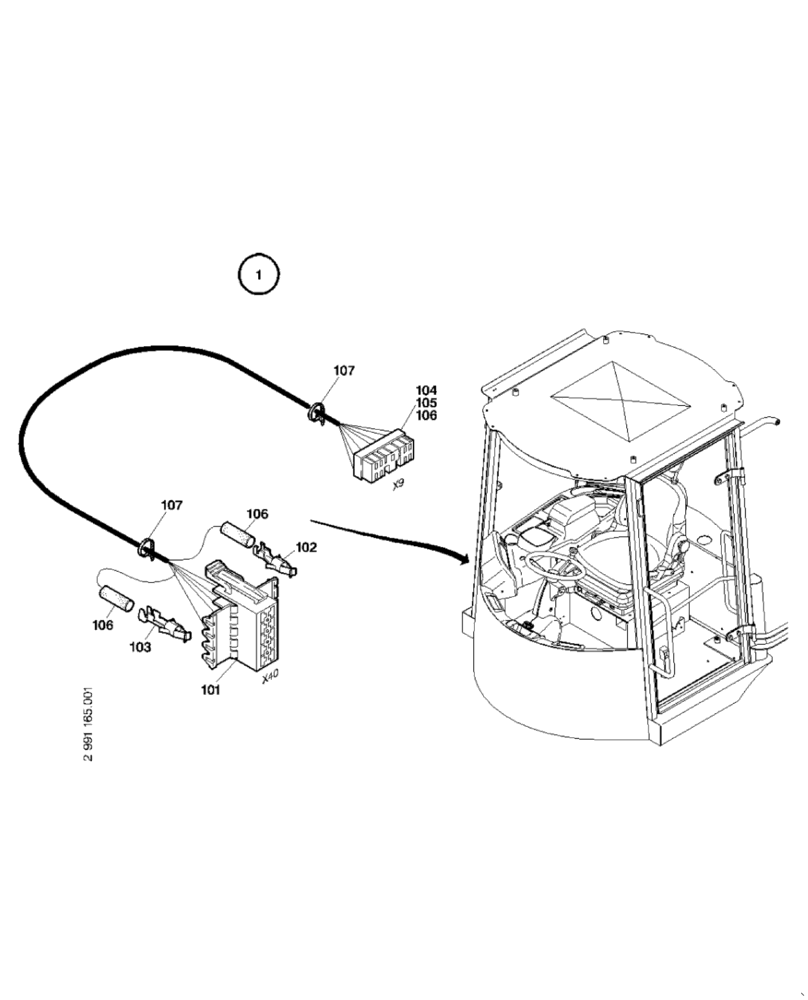

Запчасти Case 21E (32.884[2991165000]) - ANTI-THEFT DEVICE WIRE HARNESS (OPTION) (55) - ELECTRICAL SYSTEMS

1

3004963

WIRE HARNESS

Incl. 101-107

1шт.

101

2930164

MULTIPOLE CONNECTOR,Female, 14 Pole

TIMER 14 POL. JPT 929504-5 AMP

1шт.

102

2700245

CONTACT

JUNIOR-TIMER 929940-1 AMP, Replaces 424264A1

2шт.

103

2929586

CONTACT HOUSING

1,5-2,5 JUN.POW 929938-3 AMP

5шт.

104

1495377

MULTIPOLE CONNECTOR

CONNEXION D CABLES 125211N CIAM, Replaces 422627A1

1шт.

105

1495260

CABLE TERMINAL

PIN 120071 CIAM, Replaces 421121A1

7шт.

106

2975776

GROMMET

14шт.

107

94919

CABLE TIE

CABLE STRAP M4.7 x 300 , Replaces 421076A1

2шт.
