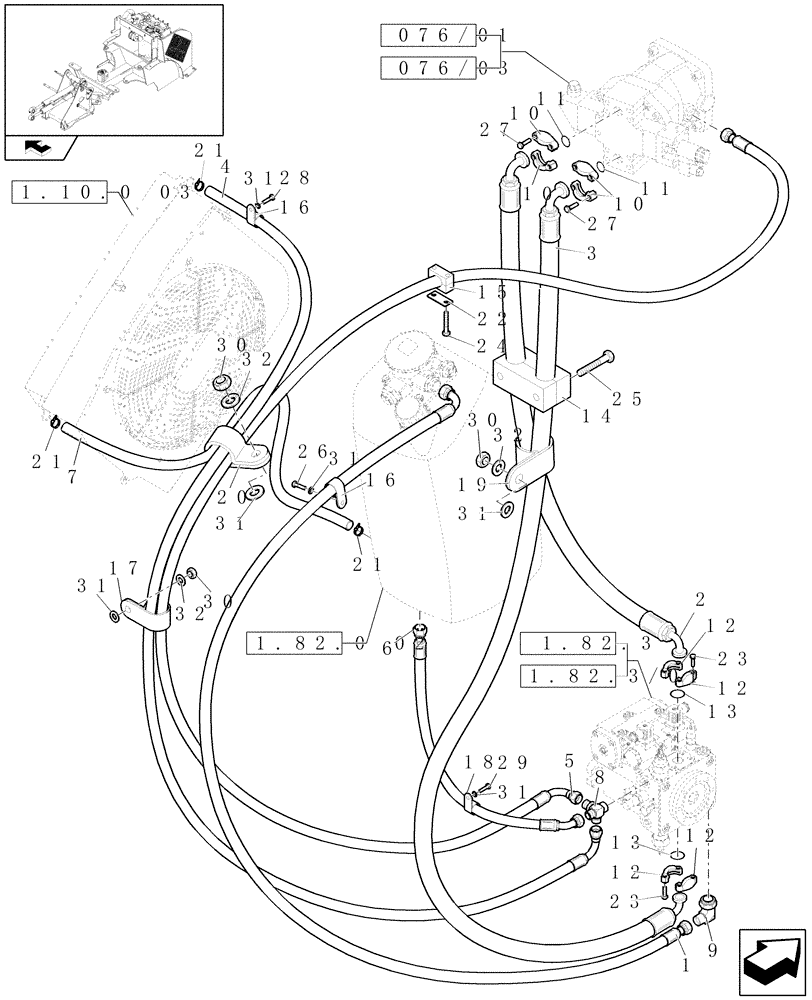

Запчасти Case 121E (1.82.6/01) - HYDRAULIC SYSTEM LINES (HIGH SPEED) (07) - HYDRAULIC SYSTEMS

1

6551471

HOSE

Includes O-rings

1шт.

2

87667133

HOSE

1шт.

3

87667134

HOSE

1шт.

4

6551472

HOSE,25mm ID x 2390mm L, SAE 100R4

1шт.

5

6551473

HOSE,20mm ID x 2530mm L

1шт.

6

6551467

HOSE,12mm ID x 1000mm L

1шт.

7

6551475

HOSE,25mm ID x 1800mm L, SAE 100R4

1шт.

8

1941834

TEE

1шт.

9

1636008

ELBOW

1шт.

10

991420

HALF-FLANGE

4шт.

11

1725418

SEALING RING

2шт.

12

727077

HALF-FLANGE

4шт.

13

1725417

SEALING RING

2шт.

14

1277946

CLAMP

1шт.

15

971443

CLAMP

1шт.

16

991365

CLIP

4шт.

17

726779

HOSE CLIP

1шт.

18

750327

CLIP

1шт.

19

936570

CLIP

2шт.

20

982399

HOSE CLIP

1шт.

21

2979287

HOSE CLAMP

3шт.

22

2978731

PLATE

1шт.

23

1183269

12 PT SCREW,M10 x 1.5 x 30mm, Cl 10.9

8шт.

24

2978727

BOLT,Hex, M6 x 1 x 45mm, Cl 8.8

2шт.

25

2975066

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

2шт.

26

2975077

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

1шт.

27

1265079

12 PT SCREW,Flg, M12 x 1.75 x 40mm, Cl 10.9

8шт.

28

300383

BOLT,Hex, M10 x 1.5 x 16mm, Cl 8.8, Full Thd

1шт.

29

939137

SCREW,Hex Soc Hd, M10 x 30, 8.8

1шт.

30

57126

NUT,Hex, M8, Cl 8

3шт.

31

2981701

WASHER,10.5mm ID x 20mm OD x 2mm Thk

6шт.

32

2975165

WASHER

3шт.
