(076/01[10]) - 20 / 35KM/H (HIGH SPEED) REAR AXLE: HYDRAULIC MOTOR ASSEMBLY

Запчасти Case 121E (076/01[10]) - 20 / 35KM/H (HIGH SPEED) REAR AXLE: HYDRAULIC MOTOR ASSEMBLY (05) - REAR AXLE

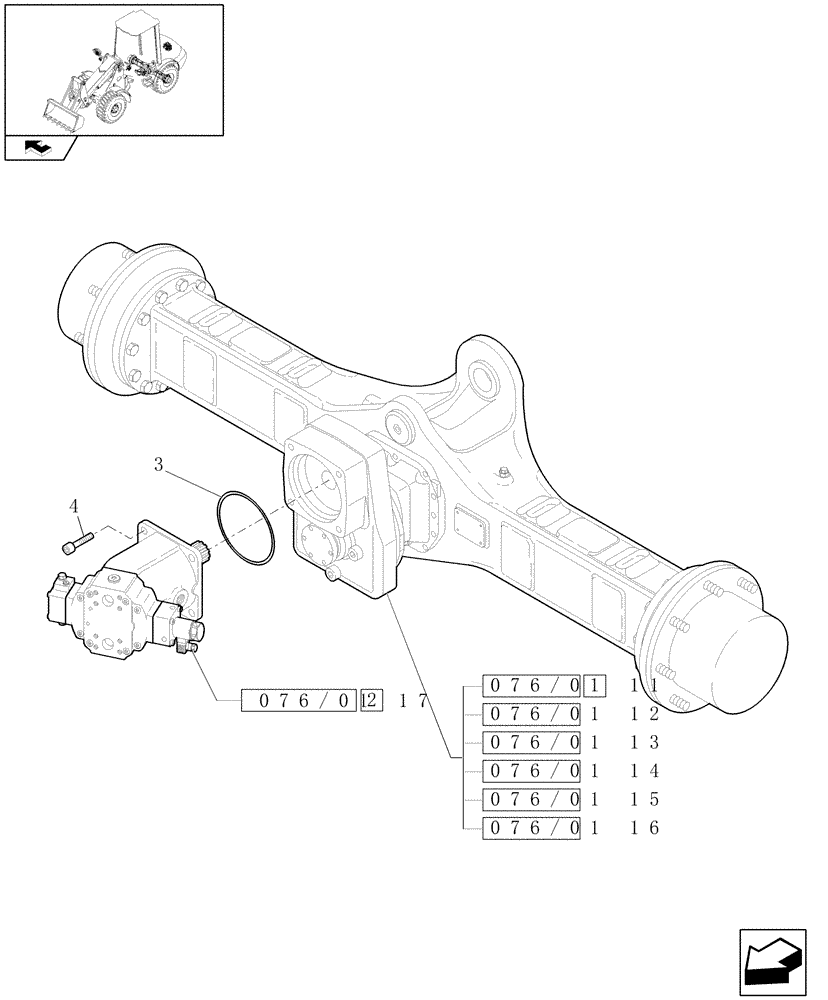

Схема запчастей Case 121E - (076/01[10]) - 20 / 35KM/H (HIGH SPEED) REAR AXLE: HYDRAULIC MOTOR ASSEMBLY (05) - REAR AXLE
4
076/01 11
076/01 17
076/01 16
076/01 15
076/01 14
076/01 13
076/01 12
home
2
1
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4552460

REAR AXLE

Assy

1шт.

Only for 121E

1шт.

1

4552451

REAR AXLE

Assy

1шт.

Only for 121E HIGH SPEED

1шт.

2

87667148

HYDROSTATIC MOTOR

Assy

1шт.

Only for 121E

1шт.

2

87667151

HYDROSTATIC MOTOR

Assy

1шт.

Only for 121E HIGH SPEED

1шт.

3

2978362

O-RING

1шт.

4

1558713

SCREW,Hex Skt, M12 x 40mm, Cl 8.8

4шт.
