(073/01[03]) - 20 KM/H REAR SELF-LOCKING AXLE: HYDRAULIC MOTOR ASSEMBLY

Запчасти Case 121E (073/01[03]) - 20 KM/H REAR SELF-LOCKING AXLE: HYDRAULIC MOTOR ASSEMBLY (05) - REAR AXLE

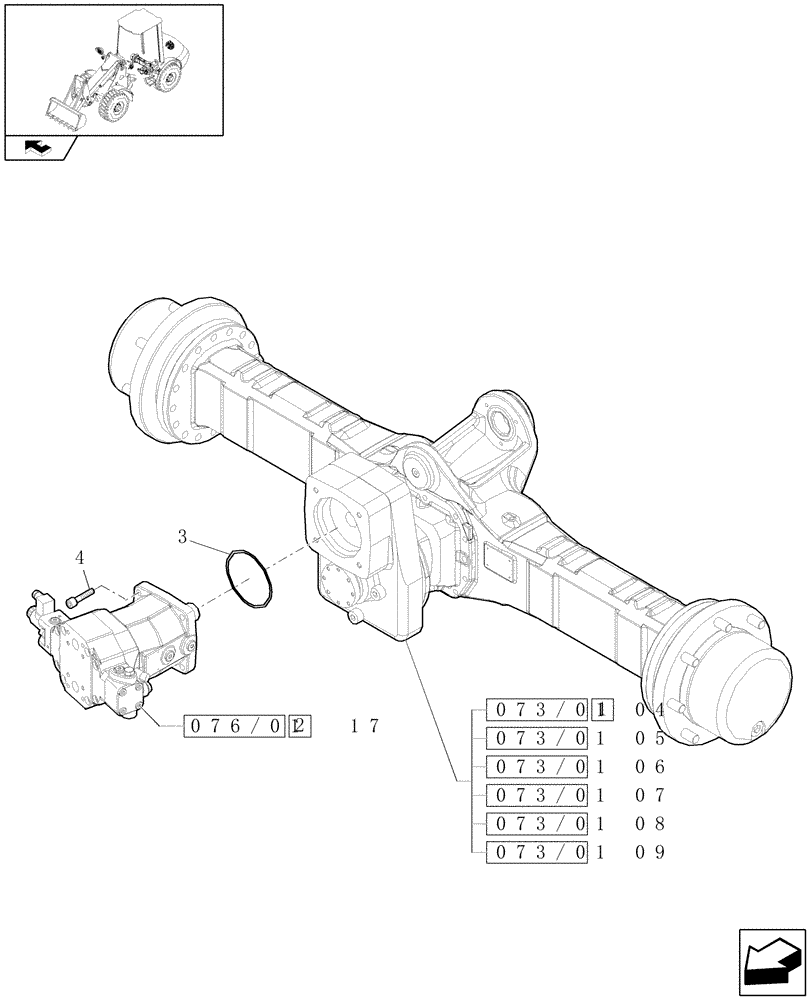

Схема запчастей Case 121E - (073/01[03]) - 20 KM/H REAR SELF-LOCKING AXLE: HYDRAULIC MOTOR ASSEMBLY (05) - REAR AXLE
4
2
073/01 04
073/01 09
073/01 08
073/01 07
073/01 06
073/01 05
home
3
076/01 17
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

4552466

REAR AXLE

Assy

1шт.

2

87667148

HYDROSTATIC MOTOR

Assy

1шт.

3

2978362

O-RING

1шт.

4

1558713

SCREW,Hex Skt, M12 x 40mm, Cl 8.8

4шт.

Выбрано товаров: 4
