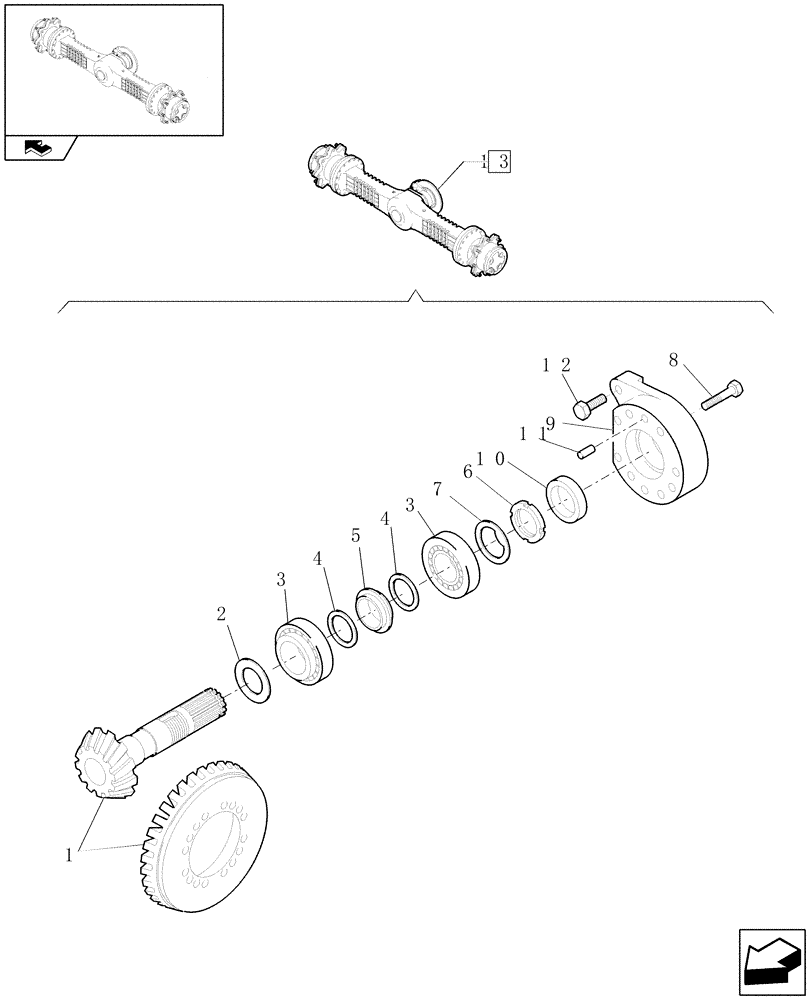

Запчасти Case 121E (076/01[04]) - 20 / 35 KM/H (HIGH SPEED) FRONT RIGID AXLE : PINION GEAR AND RING GEAR (04) - FRONT AXLE

1

6914508

GEAR SET

Z9/33

1шт.

2

6914514

SHIM,2.5mm Thk

, Serial Range: -NCHP00240

1шт.

2

140954A1

SHIM,2.50mm Thk

, Start Serial: NCHP00241

1шт.

2

6914517

SHIM,2.6mm Thk

, Serial Range: -NCHP00240

1шт.

2

140953A1

SHIM,2.60mm Thk

, Start Serial: NCHP00241

1шт.

2

6914518

SHIM,2.7mm Thk

, Serial Range: -NCHP00240

1шт.

2

140951A1

SHIM,2.70mm Thk

, Start Serial: NCHP00241

1шт.

2

6914519

SHIM,2.8mm Thk

, Serial Range: -NCHP00240

1шт.

2

140949A1

SHIM,2.80mm Thk

, Start Serial: NCHP00241

1шт.

2

6914520

SHIM,2.9mm Thk

, Serial Range: -NCHP00240

1шт.

2

140948A1

SHIM,2.90mm Thk

, Start Serial: NCHP00241

1шт.

2

6914521

SHIM,3.0mm Thk

, Serial Range: -NCHP00240

1шт.

2

140943A1

SHIM,3.00mm Thk

, Start Serial: NCHP00241

1шт.

2

6914522

SHIM,3.1mm Thk

, Serial Range: -NCHP00240

1шт.

2

140944A1

SHIM,3.10mm Thk

, Start Serial: NCHP00241

1шт.

2

6914523

SHIM,3.2mm Thk

, Serial Range: -NCHP00240

1шт.

2

140945A1

SHIM,3.20mm Thk

, Start Serial: NCHP00241

1шт.

2

6914524

SHIM,3.3mm Thk

, Serial Range: -NCHP00240

1шт.

2

140946A1

SHIM,3.30mm Thk

, Start Serial: NCHP00241

1шт.

2

6914525

SHIM,3.4mm Thk

, Serial Range: -NCHP00240

1шт.

2

140947A1

SHIM,3.40mm Thk

, Start Serial: NCHP00241

1шт.

3

6914526

TAPERED BEARING

, Serial Range: -NCHP00240

2шт.

3

K395090

TAPERED BEARING,40mm ID x 90mm OD

, Start Serial: NCHP00241

2шт.

4

6914527

WASHER

2шт.

5

6914528

SPACER

, Serial Range: -NCHP00240

1шт.

5

1349058C1

SPACER

, Start Serial: NCHP00241

1шт.

6

6914529

NUT

M40x1.5mm

1шт.

7

6914530

LOCKING PLATE

, Serial Range: -NCHP00240

1шт.

7

N7536

WASHER,41mm ID x 62mm OD x 2mm Thk

, Start Serial: NCHP00241

1шт.

8

6914531

SCREW

, Serial Range: -NCHP00240

10шт.

9

6914532

FLANGE

, Serial Range: -NCHP00240

1шт.

10

6914533

SEAL

, Serial Range: -NCHP00240

1шт.

11

NSS

NOT SOLD SEPARAT

, Serial Range: -NCHP00240

1шт.

12

6914423

SCREW

, Serial Range: -NCHP00240

2шт.

13

4552433

FRONT AXLE

Assy, Serial Range: -NCHP00240

1шт.

Only for 121E, 221E, 321E

1шт.

13

4552447

FRONT AXLE

Assy, Serial Range: -NCHP00240

1шт.

Only for 121E HS, 221E HS, 321E HS

1шт.

13

84550221

FRONT AXLE

Assy, Start Serial: NCHP00241

1шт.

Only for 121E, 221E, 321E

1шт.

Only for 121E HS, 221E HS, 321E HS

1шт.
