(02.212[2988850000]) - REAR AXLE FAST GEAR SELF-LOCKING 35 KM/H

Запчасти Case 121E (02.212[2988850000]) - REAR AXLE FAST GEAR SELF-LOCKING 35 KM/H (27) - REAR AXLE SYSTEM

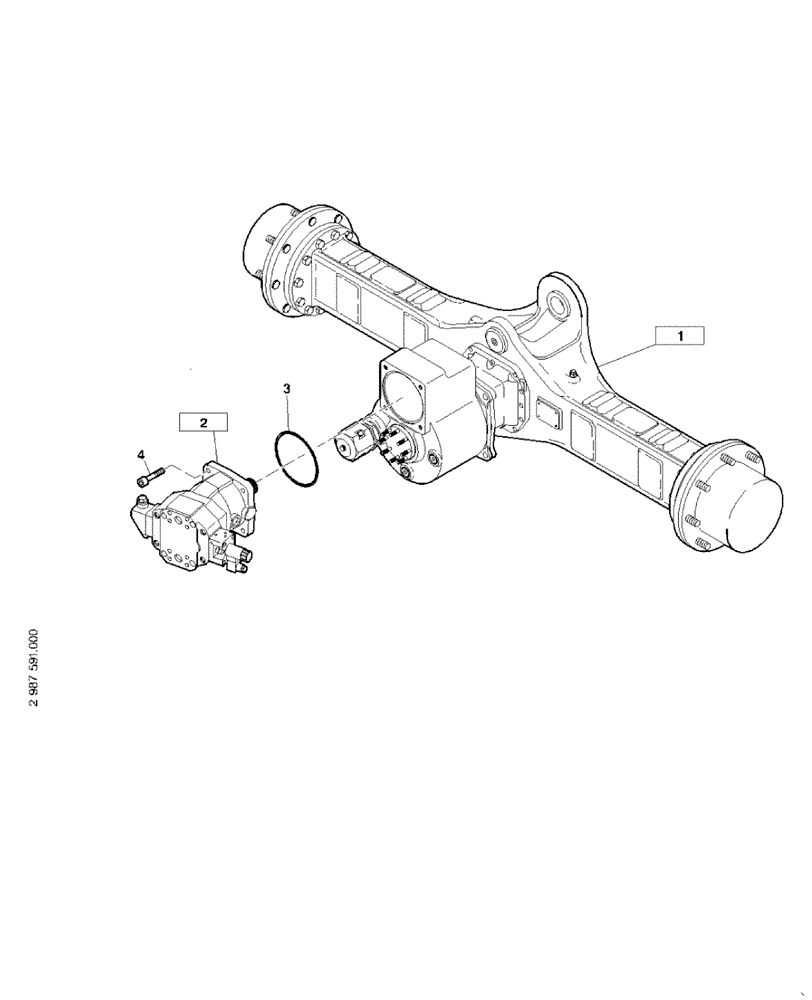

Схема запчастей Case 121E - (02.212[2988850000]) - REAR AXLE FAST GEAR SELF-LOCKING 35 KM/H (27) - REAR AXLE SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Rear Axle Fast Gear Self-Locking, (4552451) See Fig 02.213

1шт.

2

4550979

HYDRAULIC MOTOR

See Fig 22.121

1шт.

3

2978362

O-RING

134 x 3 mm

1шт.

4

864-12040

HEX SOC SCREW,M12 x 40mm, Cl 8.8

4шт.
