(02.210[2988830000]) - REAR AXLE FAST GEAR SELF-LOCKING 35 KM/H

Запчасти Case 121E (02.210[2988830000]) - REAR AXLE FAST GEAR SELF-LOCKING 35 KM/H (27) - REAR AXLE SYSTEM

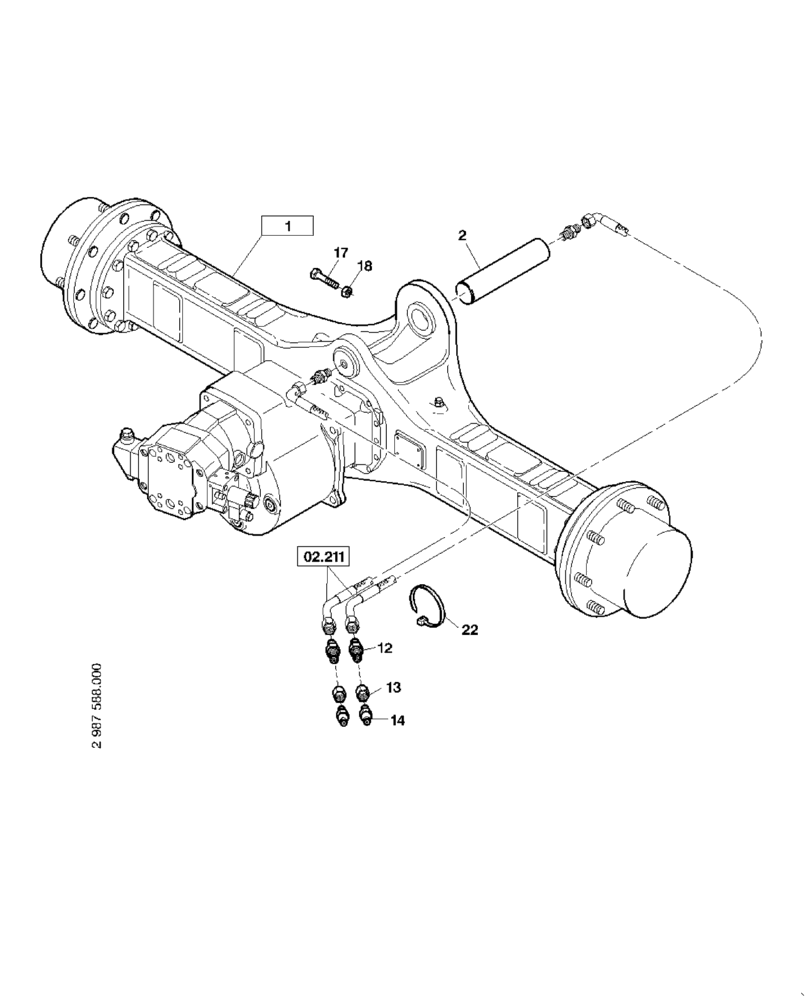

Схема запчастей Case 121E - (02.210[2988830000]) - REAR AXLE FAST GEAR SELF-LOCKING 35 KM/H (27) - REAR AXLE SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Rear Axle Fast Gear Self-Locking,(4552470) See Fig 02.211

1шт.

2

2120409

PIN,50mm OD x 265mm L

Replaces 420375A1

1шт.

12

4505471

HYD CONNECTOR

Replaces 420382A1

2шт.

13

69810

NUT

Replaces 420476A1

2шт.

14

38918

LUBE NIPPLE

2шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

18

825-1412

NUT,M12, Cl 8

1шт.

22

726789

CABLE TIE,M4.8 x 188

CABLE STRAP Replaces L11541

2шт.
