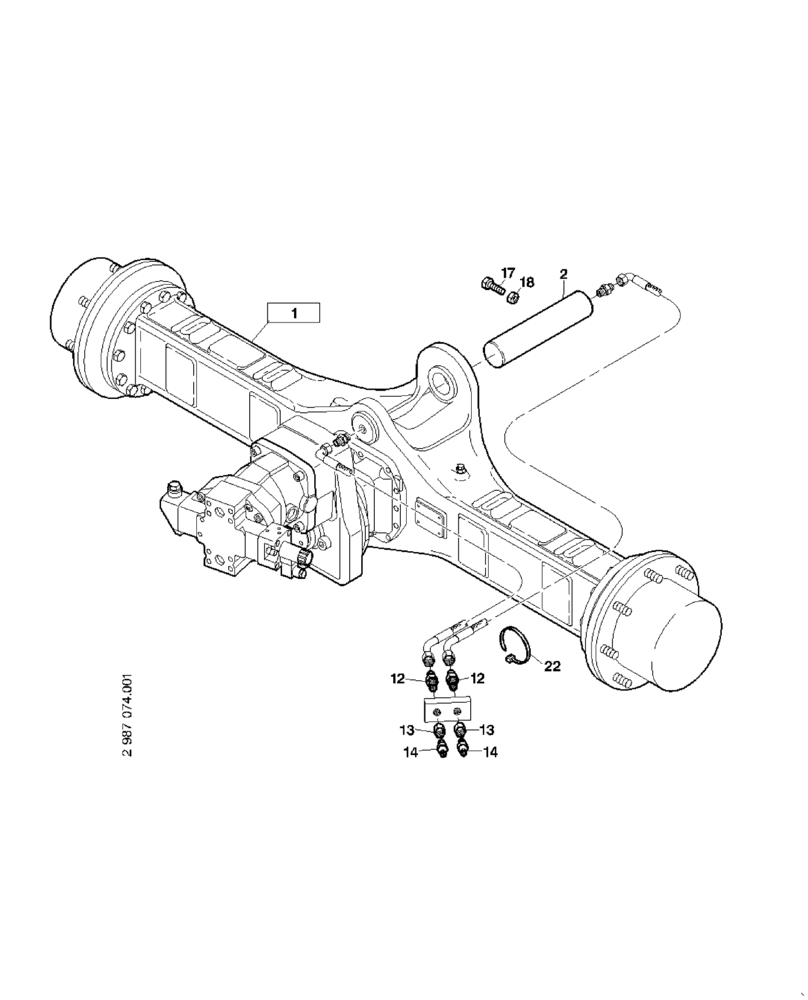

Запчасти Case 121E (02.020[2988908000]) - REAR AXLE INSTALLATION STANDARD 20 KM/H (27) - REAR AXLE SYSTEM

1

Rear Axle Installation Standard, (4552458) See Fig 02.021

1шт.

2

2120409

PIN,50mm OD x 265mm L

1шт.

12

4505471

HYD CONNECTOR

2шт.

13

69810

NUT

2шт.

14

38918

LUBE NIPPLE

2шт.

17

9706687

BOLT,M12 x 1.75 x 30mm, Cl 8.8

1шт.

18

57130

NUT,M12, Cl 8

1шт.

22

726789

CABLE TIE,M4.8 x 188

CABLE STRAP

2шт.
