(02.016[2988904000]) - REAR AXLE INSTALLATION SELF-LOCKING 20 KM/H

Запчасти Case 121E (02.016[2988904000]) - REAR AXLE INSTALLATION SELF-LOCKING 20 KM/H (27) - REAR AXLE SYSTEM

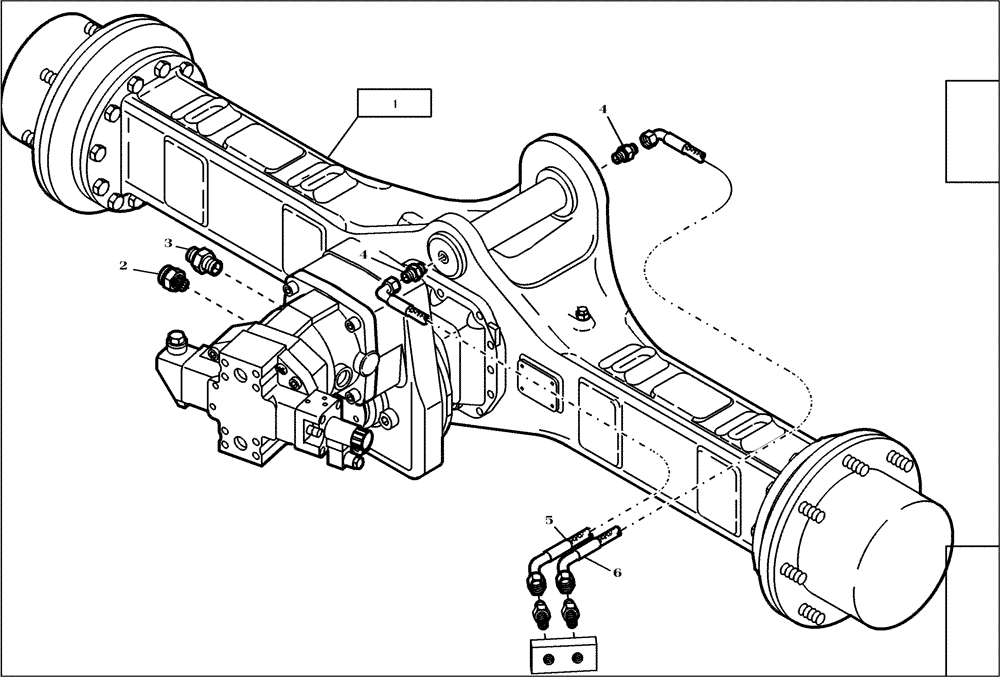

Схема запчастей Case 121E - (02.016[2988904000]) - REAR AXLE INSTALLATION SELF-LOCKING 20 KM/H (27) - REAR AXLE SYSTEM
2
4
6
1
4
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Rear Axle Mounting Parts Self-Locking, (4552465) See Fig 02.017

1шт.

2

1527327

LUBE NIPPLE

Replaces 420381A1

1шт.

3

1768191

HYD CONNECTOR

Replaces 420477A1

1шт.

4

1768453

HYD CONNECTOR

Replaces 420267A1

2шт.

5

2292104

HYDRAULIC HOSE,M5 x 1100

Replaces 420471A1

1шт.

6

2292108

HYDRAULIC HOSE,M5 x 1400

Replaces 420474A1

1шт.
