(02.003[2991372000]) - AXLES ASSEMBLY SET SELF-LOCKING 20 KM/H

Запчасти Case 121E (02.003[2991372000]) - AXLES ASSEMBLY SET SELF-LOCKING 20 KM/H (23) - FOUR WHEEL DRIVE SYSTEM

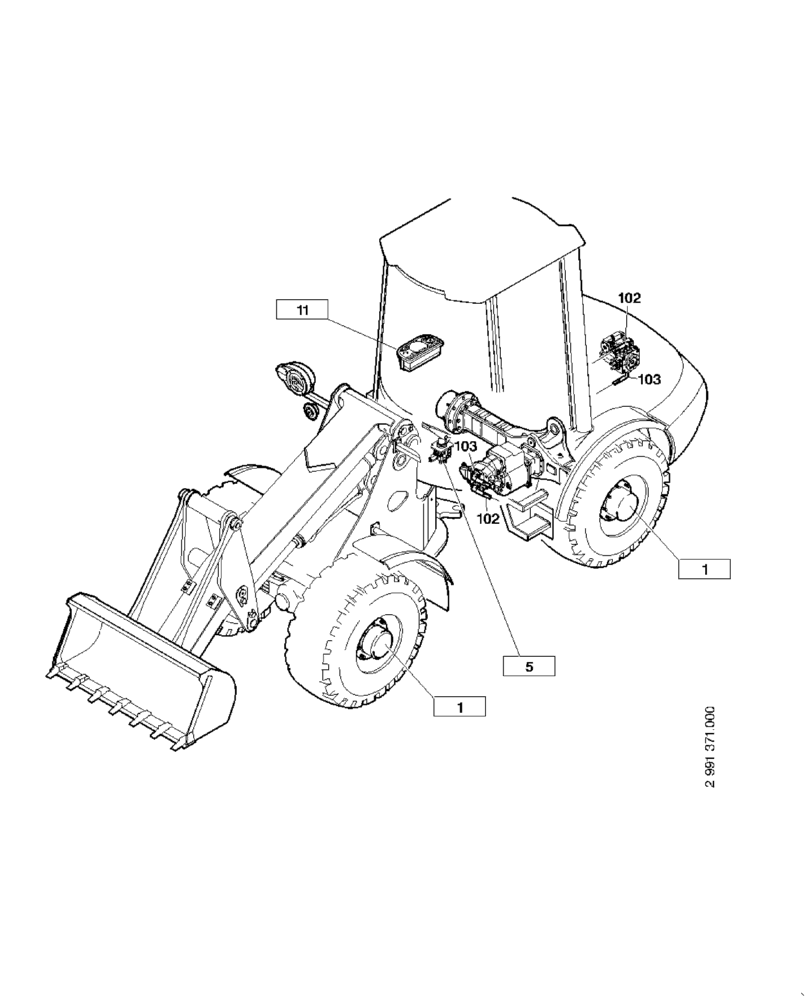

Схема запчастей Case 121E - (02.003[2991372000]) - AXLES ASSEMBLY SET SELF-LOCKING 20 KM/H (23) - FOUR WHEEL DRIVE SYSTEM
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Rear Axles, (4554292) See Fig 02.006

1шт.

5

2813981

PRESSURE SWITCH

See Fig 23.265

1шт.

11

87657604

DASHBOARD

See Fig 32.406

1шт.

102

4552336

HYDRAULIC HOSE,20mm ID x 1710mm L

1шт.

103

4552337

HYDRAULIC HOSE,M20 x 1710

1шт.

Выбрано товаров: 5
