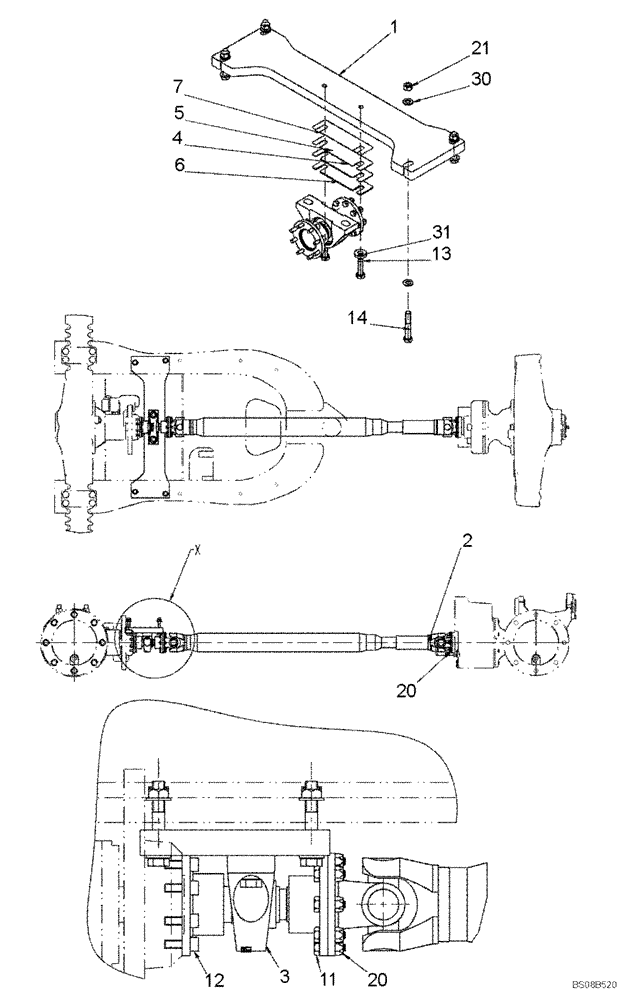

Запчасти Case 121E (07.012[8747703700]) - DRIVE SHAFT INSTALLATION FAST GEAR 35 KM/H (14) - MAIN GEARBOX & DRIVE

1

6560465

CROSSBAR

1шт.

2

4552997

DRIVE SHAFT

1шт.

3

6560464

IDLE SHAFT

1шт.

4

2840239

SHIM,1mm Thk

1шт.

5

2840350

SHIM,1.5mm Thk

1шт.

6

2840229

SHIM,2.5mm Thk

1шт.

7

87753578

SHIM

Shim 0.5MM

1шт.

11

16043634

SCREW,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

12

14306434

HEX SOC SCREW,M8 x 1.25 x 25mm, Cl 10.9, Full Thd

8шт.

13

271191

SCREW

2шт.

14

87648725

BOLT,Hex, M12 x 75mm, Cl 10.9

BOLT, M12 x 75 10.9 ZND

4шт.

20

9628098

NUT,M8 x 1.25, Cl 10

16шт.

21

935073

NUT,M12, Cl 10

4шт.

30

2975164

WASHER

8шт.

31

2975473

WASHER,13mm ID x 30mm OD x 6mm Thk

2шт.
